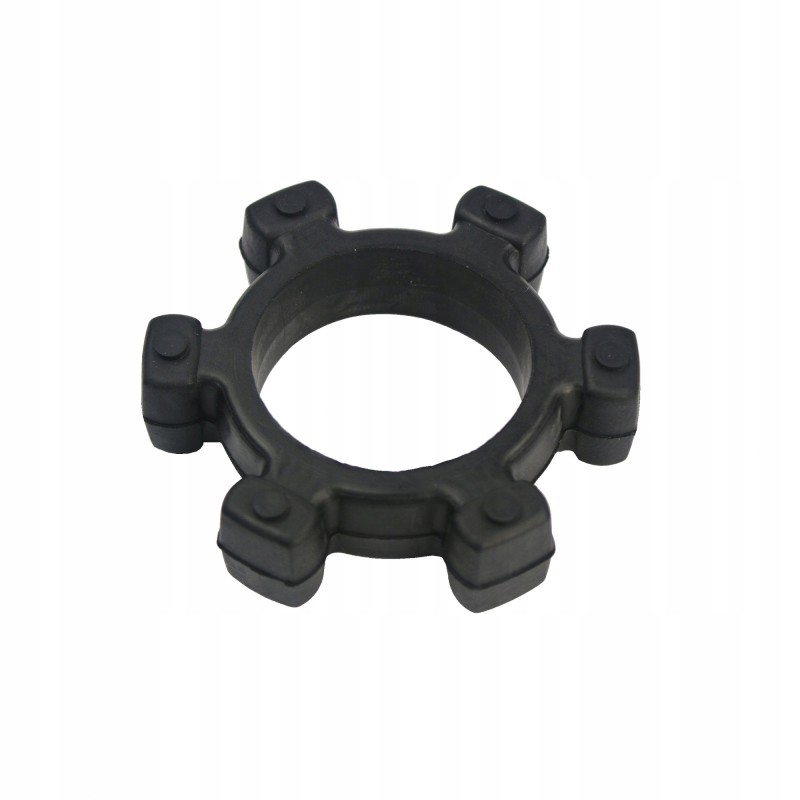

The flexible element of the g160 200 hydrolider clutch

FLEXIBLE ELEMENT OF THE CLOCK COUPLING Production:

Original product of the Hydrolider brand, symbol: 1.42.01.115

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The claw clutch is one of the elements enabling the connection of a hydraulic pump with a 1- or 3-phase electric motor with a B35 type body. Directly transfers power from the engine to the pump. The clutch is mounted and stabilized inside the bell connector.

Diameter of the flexible element: 105 mm

Material: durable rubber resistant to cracking and crushing, with a low abrasion coefficient.

Integration:

The flexible element fits couplings working with electric motors of mechanical size G160 and G200 , among others for such clutches (photo):

GR2 G160 11-15kW W:42

GR3 G160 11-15kW W:42

GR3 G180 18.5-22kW W:48

GR3 G200 30kW W:55

Example application:

usage dog clutch when connecting the hydraulic pump to a 3-phase electric motor (photo):
