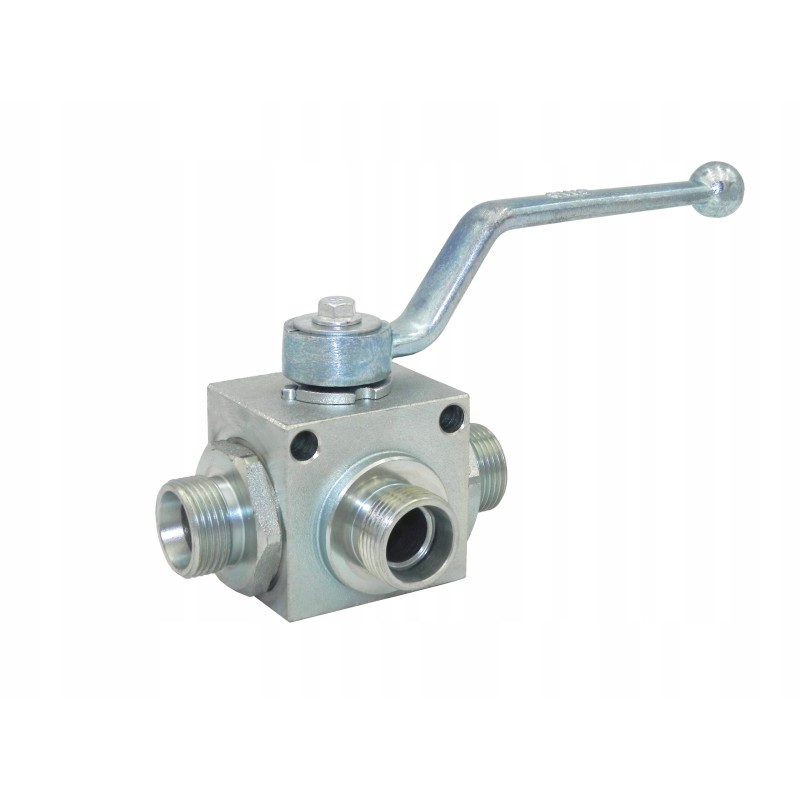

Hydraulic manual ball valve, 3-way, 22x1 5

3-WAY HYDRAULIC BALL VALVE, EXTERNAL THREAD M22x1.5 15L Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection:

Connect P to the power line, connect A and B to two lines hydraulic lines between which there is a need to switch the oil flow.

Principle of operation:

The valve is used to switch the entire oil flow between two independent hydraulic lines. Turning the lever 90 degrees completely closes the oil flow on the hydraulic line where the flow was previously free and simultaneously completely opens the flow on the other line, which was previously completely closed. The valve can be controlled even at high pressure.

Technical data:

Number of hydraulic holes in the body: 3

External threads in the body: M22x1.5 15L

Body material: galvanized steel

Maximum allowable pressure: 500 bar

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil
