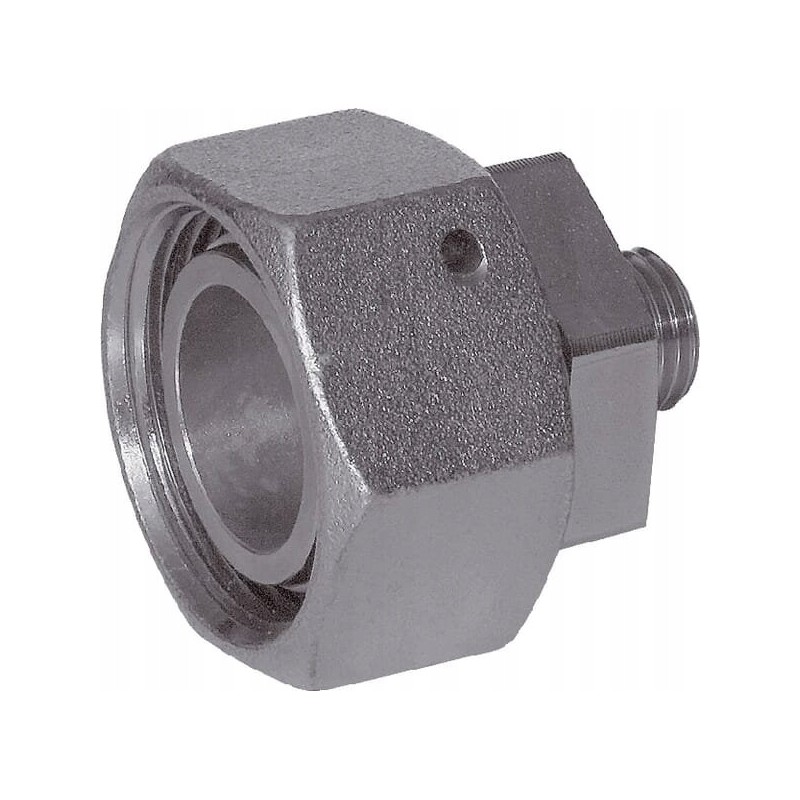

Straight connector with screws m30x2 22l m16x1 5 10l

Straight connector with nut M30x2 22L - M16x1.5 10L Parameters

Part number: REDSD2210L

Unit: Piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Straight - 2 sides connection

Connector type no. 1: Thread

Connector type no. 1 - male/female: Male

Connector thread diameter No. 1: M16

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 19 mm

Connector No. 1 Wrench Size: 27.0 mm

Connector No. 2 Type: Thread

Connector No. 2 Type - male/female: Female

Connection no. 2 thread diameter: M30

Connection no. 2 thread pitch: 2.00 mm

Connection no. 2 thread type: Metric

Wrench size for connector no. 2: 36.0 mm

DIN standard: 2401

Inner diameter : 8 mm

Length: 33 mm

Total length: 47.5 mm

Max. working pressure: 250 BAR

Internal diameter. sealing ring: 20 mm

Sealing washer thickness: 2 mm

Seal material: Nitrile rubber [NBR]

Series: L

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Viton

gasket available on request Pipe diameter

- 22 mm

- 10 mm
