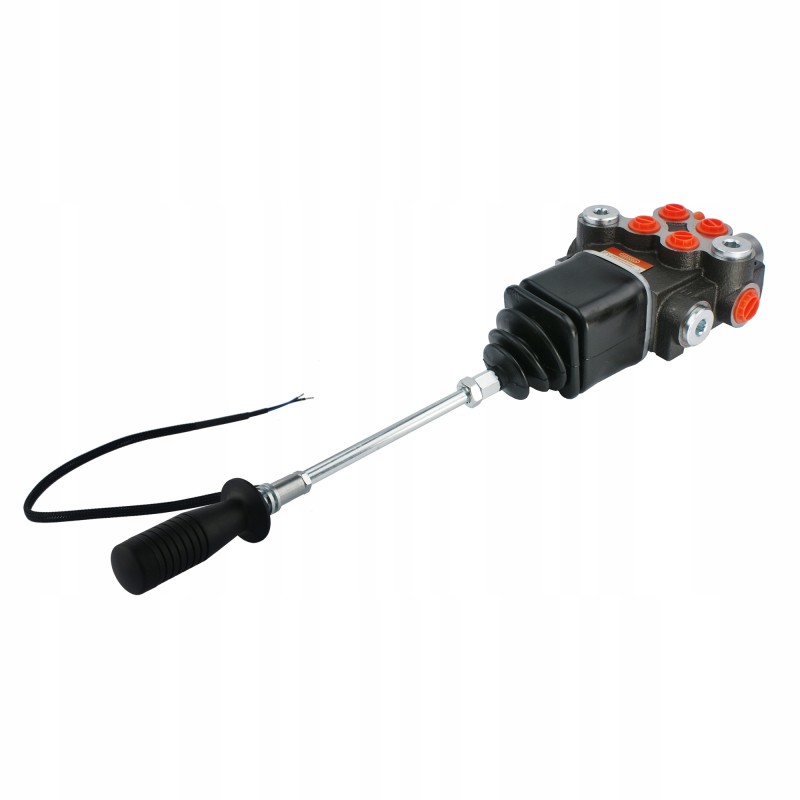

Distributor hydr 2s 40l a1a1 joy 1p badestnost

2-SECTION HYDRAULIC DIVIDER P40 CONTROLLED BY A BUILT-IN JOYSTICK WITH A BUTTON production:

Original product of the BADESTNOST brand, manufacturer's symbol: 1.10.00.029.1

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders , excavators, sweepers, industrial machines and other hydraulically controlled devices.

Technical data:

Recommended oil flow in the system: 0 - 40 l/min. Example control: two double-acting actuators plus additional electrical control, e.g. a 6/2 solenoid valve (controlled by the third actuator)

Possibility of serial connection to an existing system (pressure sleeve required).

Control:

Five-position joystick on a spring, i.e. it returns to the vertical by itself:

Neutral position 0 (joystick set vertically), the piston rods of both actuators are stationary - the oil goes to the overflow.

Working position 1 (joystick lever set in a diagonal position forward), the piston rod of the first actuator extends.

Working position 2 (joystick lever set in a diagonal position backwards), the piston rod of the first actuator retracts.< p>

Working position 3 (joystick lever set diagonal to the left) the piston rod of the second actuator extends.

Working position 4 (joystick lever set diagonal to the right) the piston rod of the second actuator retracts .

12V or 24V electric button:

Pressing the button on the joystick allows you to output an electric signal that activates the coil in various types of electrically operated valves. The most popular is the 6/2 solenoid valve, which allows you to control an additional third section, in the TUR loader it can be a crocodile or a bale grabber.

On the right, there is a hydraulic diagram of the offered distributor:

Connection :

Supply from the pump (P1, P2): BSP 1/2'' internal thread

Return to the tank (T1, T2): BSP 1/2'' internal thread< p>

Sections (A1, A2, B1, B2): BSP 3/8'' internal thread

Series connection (N): BSP 1/2' internal thread

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 10 l/min

190 bar at 20 l/min

200 bar at 30 l/min

210 bar at 40 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

Oil types recommended by AGRICOLA:

Thinner, high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C
