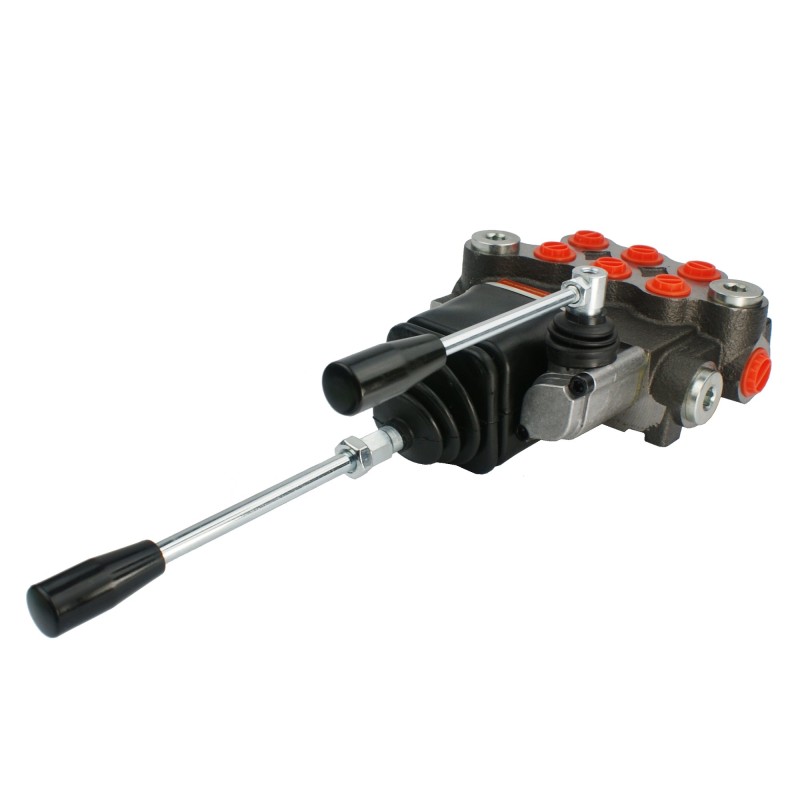

Hydraulic distributor, 3-section, 40l, joystick

3-SECTION HYDRAULIC DISTRIBUTOR P40 CONTROLLED BY A BUILT-IN JOYSTICK AND LEVERProduction:

Original product of the Badestnost brand, manufacturer's symbol: 03P40 A1A1A1+JOY, symbol: 1.10.00.039

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders , construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Technical data:

Recommended oil flow in the system: 0 - 40 l/min. Example control: three double-acting actuators.

Possibility of serial connection to an existing system (pressure sleeve required).

Control:

Five-position joystick (1 - 2 - 0 - 3 - 4), on a spring, i.e. it returns to the vertical on its own:

Neutral position 0 (joystick set vertically), the piston rods of both actuators are stationary - the oil goes to the overflow.

Working position 1 (joystick lever set in a forward diagonal position), the piston rod of the first actuator extends.

Working position 2 (joystick lever set in a backward diagonal position), the first actuator's piston rod retracts.

Working position 3 (joystick lever set diagonal to the left), the piston rod of the second actuator extends.

Working position 4 (joystick lever set diagonal to the right), the piston rod of the second actuator retracts.

Three-position lever (1 - 0 - 2), spring-loaded, i.e. it returns to the vertical by itself:

Neutral position 0 (lever set vertically), the actuator piston rod is standing - the oil goes to the overflow.< p>

Working position 1 (lever set in a forward diagonal position), the actuator piston rod extends.

Working position 2 (lever set in a backward diagonal position), the actuator piston rod retracts.

On the right, a hydraulic diagram of the offered manifold:

Connection:

Power supply from the pump (P1, P2): BSP 1/2'' internal thread

Return to tank (T1, T2): BSP 1/2'' internal thread

Sections (A1, A2, A3, B1, B2, B3): BSP 3/8'' internal thread< p>

Series connection (N): BSP 1/2' internal thread

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on the sections: 300Bar

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 10 l/min

190 bar at 20 l/min

200 bar at 30 l/min

210 bar at 40 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

Oil types recommended by AGRICOLA:

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended range oil temperatures:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C
