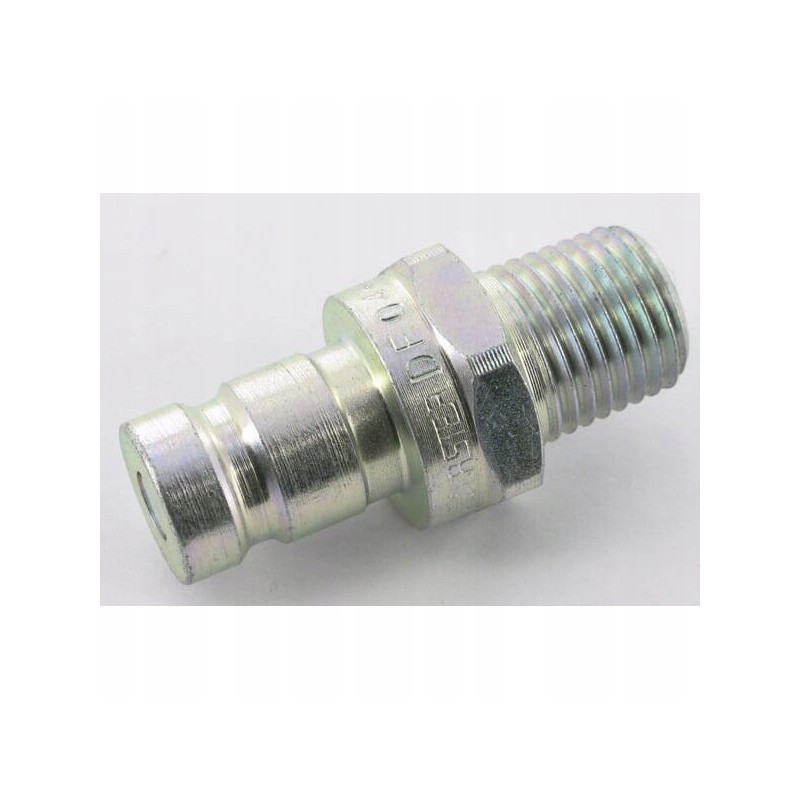

Diagnostic quick connector DF plug 1/4 external thread 1/4 NPTF INDEX: DF04114NPTM

Length: 41mm

Material: Steel

Specifications: - Flat seal Very small size

Benefits: - Minimum degree of leakage - Connection without air inclusions

Features: - Intended as a diagnostic connector - Connection is made by inserting the plug (one-handed operation) - Disconnects by retracting the sleeve

Valve type: Flat

Shape: Straight - 2 sides connection

Application: - Point measurement systems - Mineral oil based fluids

Size: 6.3mm

Outside diameter: 21mm

ISO standard: 15171-1

Connection: dB

Surface treatment: Chrome plated

Connector thread type: NPTF

Total length: 41.1mm

Seal material: Nitrile rubber [NBR]

Note: To disconnect, move the locking sleeve of the coupler back.

Weight: 37g

Working pressure: 470BAR

Type of connector no. 2 - male/female: Male

Possibility of connection under pressure: No

Max operating temperature: 125°C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press, to connect

Diameter of connection no. 2: 12.7 mm

ANSI standard: B1.20.3

Method of disconnection: Sleeve offset

Type of connection no. 2: Push-in

Flow at pressure 2 bar: 2l/min

Type of connection no. 1: Thread

Type Connector No. 1 - Male/Female: Male

Connector No. 1 Thread Diameter: 12.55mm

Connector No. 1 Wrench Size: 19mm

Connector No. 1 Thread Type - Code: 01

Connect No. 1 Diameter: 0.49inch
