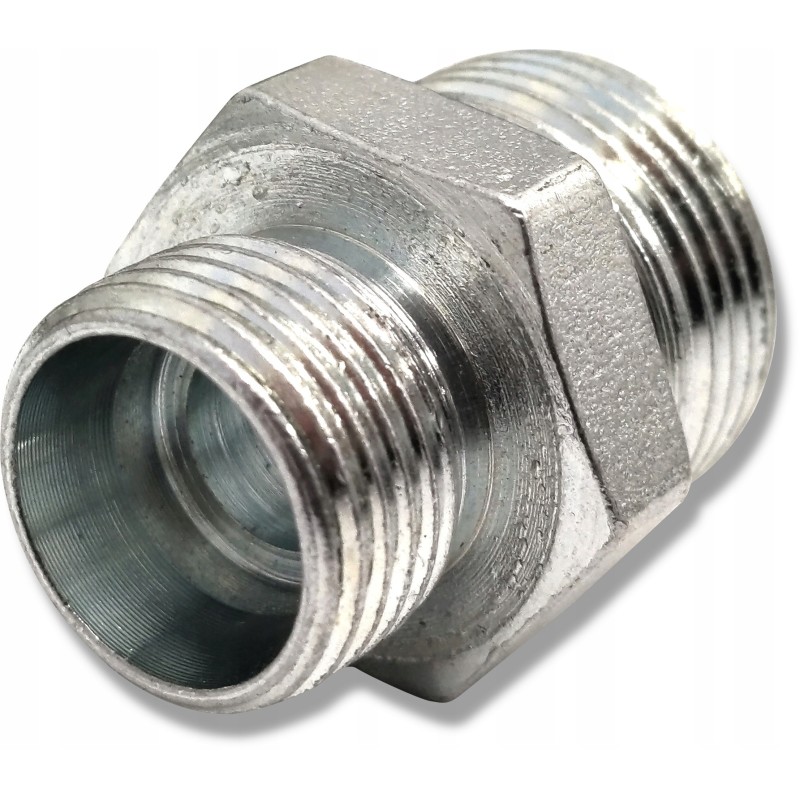

Straight hydraulic connection, nipple 3 4 3 4
  • Straight hydraulic connection, nipple 3 4 3 4
  • Straight hydraulic connection, nipple 3 4 3 4

Straight hydraulic connection, nipple 3 4 3 4

15010707116152
Other (SM)
£12.54
Quantity
5 Items

Description
STRAIGHT HYDRAULIC REDUCTION NIPEL G3/4' - G3/4' SKRAW-MET CODE: [1508]Application:Hydraulic reduction is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry or construction.

It is used to connect the main components in the hydraulic system with hydraulic lines.

It is responsible for connecting the hydraulic line or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

Technical specifications: Clamping cone angle: 24° (typical for the Polish standard)

Total length: 47mm

Nominal passage diameter: 16mm

G1 thread on the body side: external inch 3/4'

G2 thread on the cable side: external inch 3/4'

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material: weldable, galvanized steel, corrosion-resistant

Product Details
Other (SM)
15010707116152
1508.3/4-3/45078
5 Items
New

Data sheet

Manufacturer
Other (SM)
Part Number
1508.3/4-3/45078
