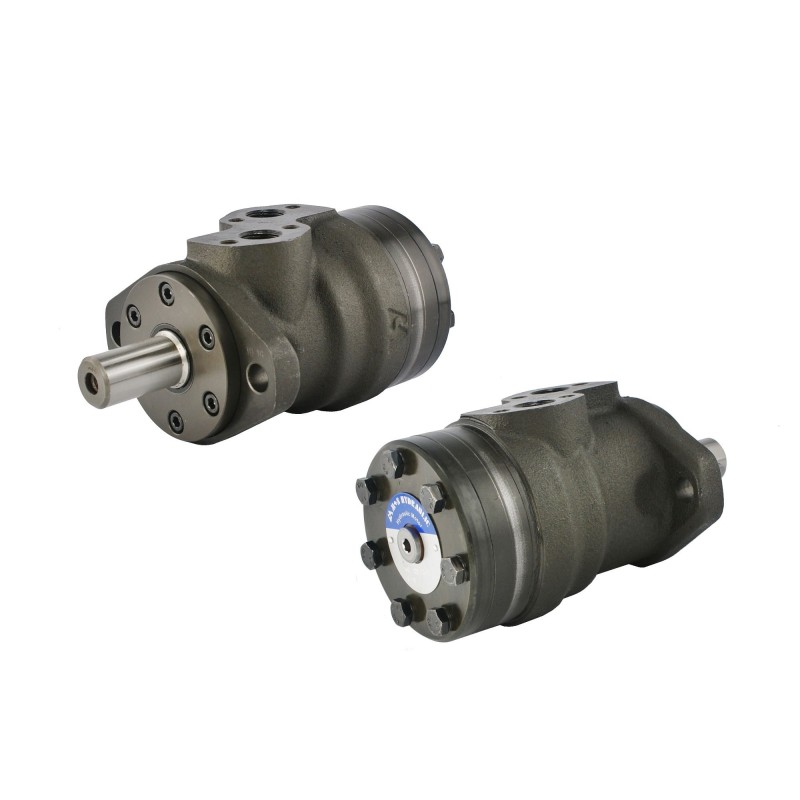

BMR hydraulic motor with bearings, 80 cm3, 750 rpm

HYDRAULIC MOTOR TYPE MR 80 TYPE: REINFORCED GEROLLER SHAFT: 25 mm MAX. SPEED: 750 rpm Production:

Original product of the M+S Hydraulic brand, symbol: 1.37.11.080

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Engines with the same dimensions, depending on the origin and manufacturer, appear under different symbols, including: BMR, SMR, BMP, OMP, EMP and others

The MR 80 hydraulic motor is intended primarily for operation in various types of agricultural and industrial equipment. In systems with average power demand and average oil flow, we want to obtain quite high rotational speed.

Recommended use:

Wrappers, forage harvesters, spreaders

Sweepers , sand spreaders, snow blowers

Cutters for carrots, beets, onions and others

Leaf and branch strippers

Conveyor drives

Chippers and branch shredders

Forest winches and vehicle winches

Orchard drilling rigs and drilling rigs for holes in the ground

Characteristics and advantages of MR engines manufactured by M+S Hydraulic:< p>

roller bearings instead of plastic inserts

possibility of connecting in series and parallel

high starting torque and smooth operation immediately after starting

high resistance to forces axial and radial

simple installation

low noise level

long service life even under difficult conditions of use

The design of MR motors is based on the GEROLLER system consisting of the use of reinforced roller bearings inside. The rollers provide the highest resistance to overloads and long engine life. Roller motors are recommended for systems that operate in difficult conditions, during long, uninterrupted work in agriculture and industry.

ATTENTION! The cheapest motors offered on the market are not GEROLLER, they do not have roller bearings, only rigid bushings, ask your current supplier what type of motors he offers.

Technical data:

Direction of rotation : double-sided

Internal threads in the body: 1/2'

Ports: side connection

Body material: cast iron

Maximum parameters in continuous operation:

Maximum flow: 60 l/min

Maximum rotation speed: 750 rpm

Maximum pressure: 17.5 MPa (175 bar )

Maximum power: 12.5 kW

Maximum torque: 20 daNm (200 Nm)

Maximum parameters in momentary operation, max. 6 seconds every minute:

Maximum flow: 75 l/min

Maximum rotation speed: 940 rpm

Maximum pressure: 20 MPa (200 bar)

Maximum power: 15 kW

Maximum torque: 22 daNm (220 Nm)

Oil types recommended by AGRICOLA:

Rare high-quality oil: LOTOS AGROL BOXOL 26

Medium-thick high-quality oil: AGRO OIL L-HL 32

Thick high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended temperature range oil:

Permissible ambient temperature: -40 C to +80 C

Permissible oil temperature: -15 C to +80 C

ENTIRE SERIES OF MR ENGINES AVAILABLE IN OTHER AUCTIONS - BELOW IS A TABLE OF PARAMETERS FOR ALL ENGINES FROM THIS SERIES
