Hydraulic hose cable aa dn8 m16 d 700 350bar

Hydraulic hose AA 8/2 M16x1.5, 2-braid (2SN), 350 Bar, L-700 mm Flexible hydraulic hoses, next to rigid seamless pipes, are used in every power hydraulics system for fluid transfer. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose made on the basis of the North-Fighter hydraulic hose meets the EN 853 2SN standards while offering an attractive price. It is an ideal solution for hydraulic systems with operating pressure not exceeding 350 Bar.

Hose specifications:

internal diameter: 8.2 mm, 5/16', dash: -05

outer diameter: 16 mm

inner layer: synthetic rubber

reinforcement: 2 steel wire braids

outer layer: synthetic rubber

working pressure: 350 Bar

burst pressure: 1400 Bar

bending radius: 115 mm

temperature range: -40°C +100°C

standard: EN 853 2SN

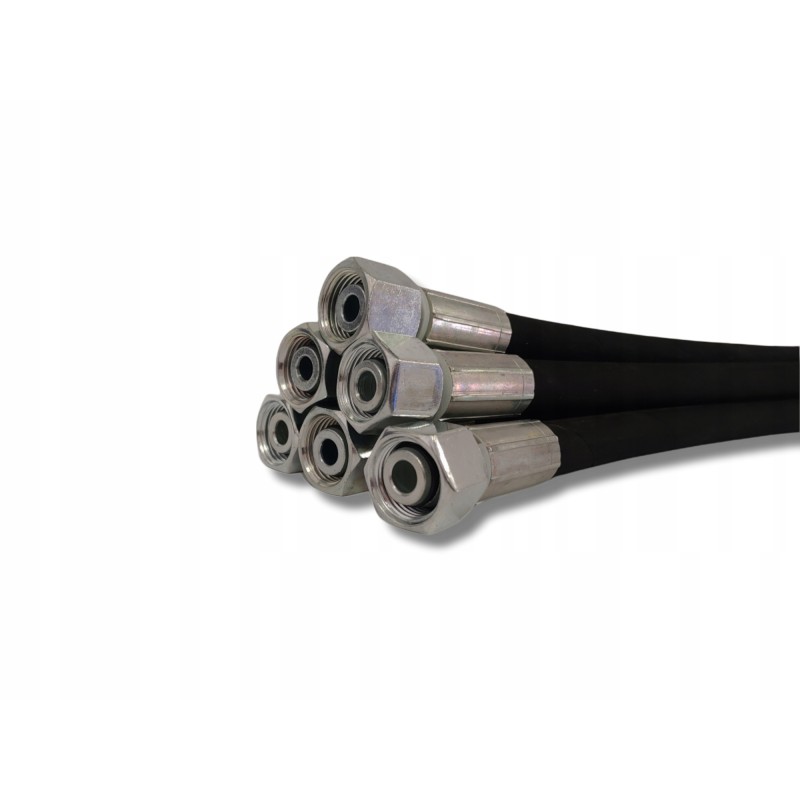

Cable crimped on both sides with DKOL straight metric terminals with internal thread M16x1.5 10L (nut).

Specification cable:

length L - 700 mm

end 1: DKOL M16x1.5 10L

end 2: DKOL M16x1.5 10L

On other auctions available cables in lengths: 300, 400, 500, 600, 700, 750, 800, 900, 1000, 1100, 1200, 1250, 1450, 1500, 2000, 2500, 3000, 3500, 4000, 45 00, 5000 , 6000, 7000, 8000, 9000 and 10000 mm.

We are able to produce a hose in any required size!

All our hydraulic lines are cleaned at the appropriate stage of production, thanks to which the user has the certainty of receiving a product ready for installation and the certainty of long operation! To be able to determine the flow value of a given hose dimension, you must use the appropriate table (see below).

The data is selected depending on the type of hose:

pressure (supply) line

suction or return line

To determine the appropriate diameter of the hydraulic hose, you need a ruler, one end of which is applied to the flow value (left ruler), the other to the flow velocity value (line law) depending on the place of use of the pipe.

The flow velocity lines have ranges of values that depend on the individual characteristics of the system.

To determine the best parameters, you must choose the average value from a given range, rounding the cable dimension to the full size above the indication.

When designing and selecting cables for a given system, you also need to pay attention to:

twist angle of the ends, this is used in the case of the following types of hoses: elbow: elbow, eyelet: eyelet, elbow-eyelet

selection of the appropriate type of fitting depending on the location and working position of the cable

selection of the bending radius of the hose

avoiding twisting of the hose during installation, which may cause its premature wear

proper protection of the hose against premature wear.
