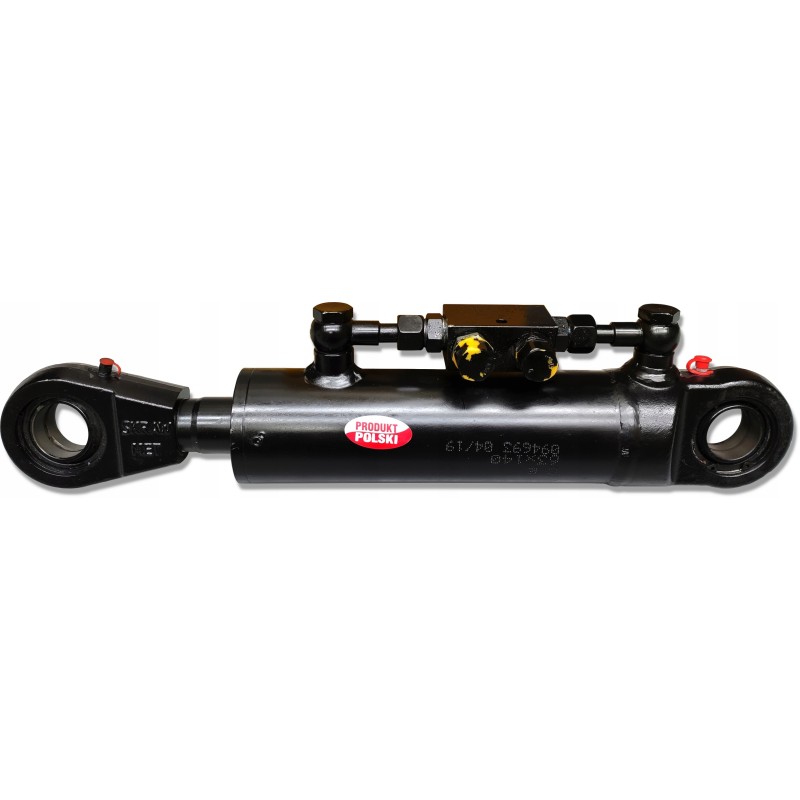

Strong slope bucket cylinder 63x36, stroke 140

Polish Hydraulic Actuator 63x36x140 with a blocking and non-return valve used to block the actuator in both directions. SKRAW-MET CODE: [1663]The set includes: SMT2KC 63x36x140 U35 actuator

Connection set

Tube< p>

Locking and return valve 'ZAMEK' VBPDE 3/8'

Double-acting Polish Hydraulic Cylinder with a stroke of 140 mm Manufacturer: Skraw-Met_____________________________________________________________________

It is worth knowing when choosing a supplier actuatorPhotos and pictures only show the external appearance of the actuators. The most important elements that affect the quality and proper operation of the actuator for a long time are hidden inside (reinforced seals, stuffing box, piston rod and high-quality pipe). All our actuators ensure the highest quality of these elements. By choosing a product from our assortment, you are making a good and wise choice and the goods come from a Polish factory.

SKRAW-MET is a long-time leader in the production of actuators. Thanks to experience, he uses only reinforced seals of Polish origin, which ensures the highest quality on the market and reliability for years!

In our other auctions you will find reinforced seals as a repair kit for this actuator.

_____________________________________________________________________

Used in excavators, loaders, grabs, ditch buckets, snow plows, crocodiles, slides and similar.

It can be used in agriculture, fruit growing, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Symbol: SMT2KC 63x36x140 U35Technical specifications: Cylinder length when folded: 422 mm

Piston stroke: 140 mm

Total length of the cylinder after unfolding: 562 mm

Piston rod diameter: 36 mm

Actuator mounted on: 2 x self-aligning bearings: 35 mm

Socket outlet: 2x M18x1.5

Maximum allowable pressure: 20MPa

Permissible ambient temperature: -40 to +60?

Permissible oil temperature: -15 to +80?

Gland type: threaded screwed into the pipe

Piston rod : chrome-plated

Hydraulic check valve 'LOCK' VBPDE 3/8'' Locking the double-acting cylinder. Made in Italy, solidly made. The valve is used in double-acting cylinders, it is used to block the cylinder in both directions.< p>

The valve releases the lock when controlling the hydraulic distributor.

The valve is used in rounds, cyclopes, forklifts, agricultural and industrial machines and other hydraulically controlled devices.

Connection: Connect V1 and V2 to the supply line (distributor) and C1 and C2 to the hydraulic cylinder.

Technical specifications: Maximum flow: 35L/min.,

Internal threads in the body: connection port 3/8',

Permissible pressure: max. pressure. 350 Bar,

Permissible ambient temperature: -40'C to +60'C,

Permissible oil temperature: -15'C to +80'C,

Oil type: mineral oil-based hydraulic oil,

Material: galvanized steel.
