Transmission multiplier PTO pump gr2 4cm3 6l thread

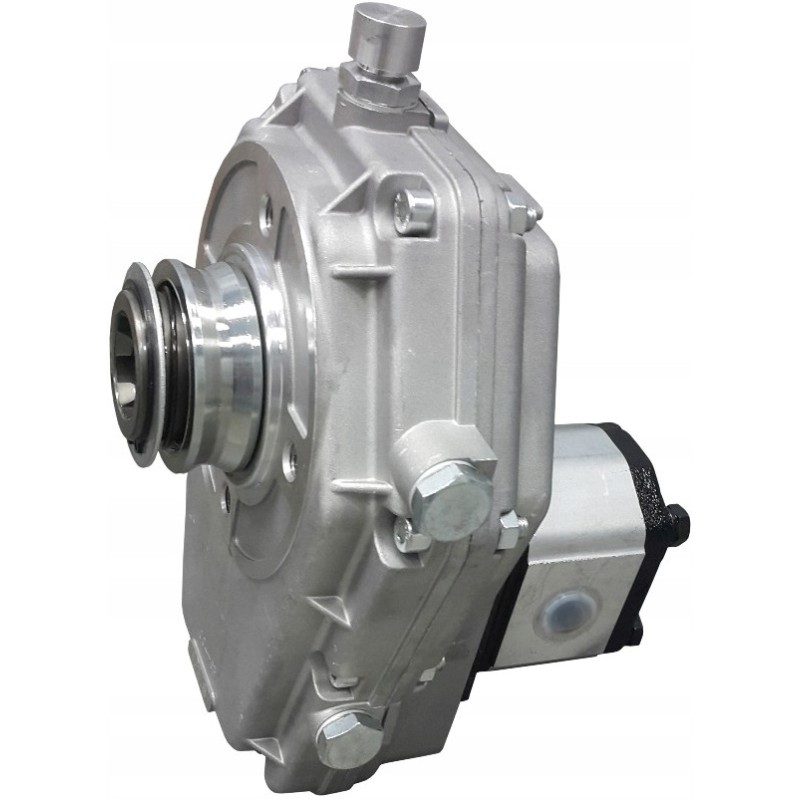

MULTIPLICATOR WITH HYDRAULIC PUMP SKRAW-MET CODE: [7496]MULTIPLICATOR TRANSMISSION 1:3.8

TYPE 60004-6 WITH A SOCKET FITTING THE PTO SHAFT FROM THE TRACTOR

GROUP 2 GEAR HYDRAULIC PUMP 4cm3/ rev 6L

SPLANT CLUTCH

MULTIPLICATOR GEAR WITH RATIO 1:3.8 gr 2SKRAW-MET CODE: [0198]TYPE 60004-6 (small)

PTO shaft gear power with 1 3/8' 6-piece profile sleeve. The gearbox is supplied with a clutch sleeve (group 2), but without oil.

Ideal for driving hydraulic pumps in forestry and construction machines and many tractors, including C-330, C-360, C-385 , ZETOR, MF and others with a PTO output.

The gearbox is mounted on the 1.3/8' DIN9611 PTO shaft using a latch, this solution means that it can be mounted or dismantled quite quickly if it turns out to be that we need a PTO to connect the PTO shaft from another machine.

The gearbox is ideal for driving hydraulic pumps of group 2 (20) with a European-type flange.

Technical data of the gearbox: Ratio Gear ratios: 1:3.8

Pump shaft type: conical 1:8

Max. power consumption (kW): 10

Max. number of revolutions ( rpm):

Input: 540

Output: 2052

Torque (da Nm):

Input: 15.9

Output: 4.2

Material:

body - aluminum

gears - steel

Requires filling with gear oil.

Recommended oil: SAE 90

Has a sight glass for checking the gear oil level.

When first used, to increase the life of the gear, it is recommended to change the oil after the first 50 operating hours.

GEAR HYDRAULIC PUMP, GROUP 2, 4cm3/rev. CUTTING-MET CODE: [2721] RIGHT SPEED

Gear hydraulic pump with internal threaded entryALHP2-B0- X-4 Efficiency 4 cm3/rev. Our elements are characterized by high quality of the material from which they are made. We recommend purchasing better parts that will extend the life of the device and reduce the risk of damage and uncontrolled stops.

Technical Specifications: direction of rotation: right

speed range: 600 - 4000 (rpm)< p>

Internal threads in the body: Discharge 1/2'

Suction 1/2'

Pressure in continuous operation: 270 bar

Pressure in temporary operation: 300 bar

Features and advantages:Gear pumps made of aluminum alloy with cast iron body and rear covers.

High volumetric efficiency thanks to innovative design and precise control of machining tolerances.

Axial compensation is achieved by movable bushings which enable high volumetric efficiency over the entire pressure range.

DU bearing ensures high pressure.

Two-piece integral one-piece gearbox and shaft.

Double shaft seals.

Nitrile seals as standard and high temperature Viton seals.

Available with flanges, shafts and ports for major European standards , German and SAE.

Available with multiple rear covers with built-in valves.

Extremely compact, reusable pump design 2.5PB / 2.5PB.

Assembly on a multi-stage pump also available in combination with types 2PE and 1.5PB.

All pumps are tested after installation and run-in to ensure a high standard.
