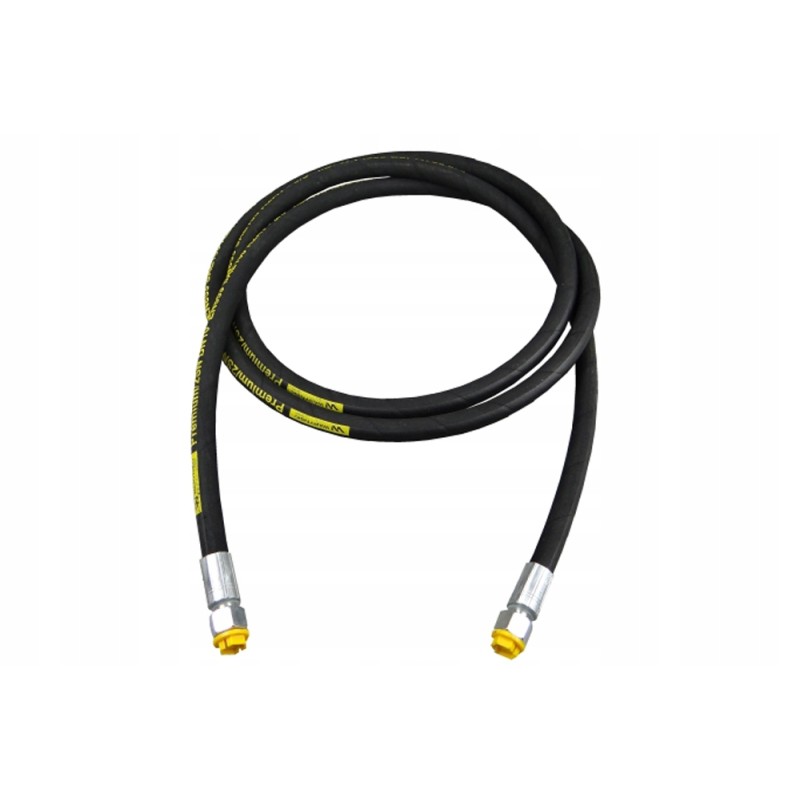

Hydraulic hose 330 bar m18x1 5 l 3000 mm dn10

Hydraulic cable 330 Bar Gwent M18x1.5 Simple L-3000mm DN10-2SN (AA-M18x1.5, P11p11) 33MPA WARYNŃSKI WARPHINE HYDRAULIC 330 BAR GWNTT M18x1.5 Simple L-3000MM WARYŃSKI *PLAMETERS:

*Operating temperature: -40 to +100 ˚C

*Length: 3000 mm

*Cracking 2/ thread: Straight/nut M18x1.5

*Crimping 1 /thread: Straight/nut M18x1.5

Waryński hydraulic hose 330 bar (33MPa) - flexible, multi-functional forged hose reinforced with a double braid of steel wire. Tested with pulsation pressure (medium: hydraulic oil). The Waryński hydraulic hose has protection in the form of yellow plugs on its crimped ends. Thanks to this, no contaminants get inside the lines, which could damage the working elements of the hydraulic system. All plugs are threaded and screwed onto the appropriate type of hydraulic hose end.

*Interchangeable indices: AA-10-3000 P11P11/211/10-3000

-️ Application: Hydraulic drives and controls in industry and agriculture Trailer

* Producer: Waryński
