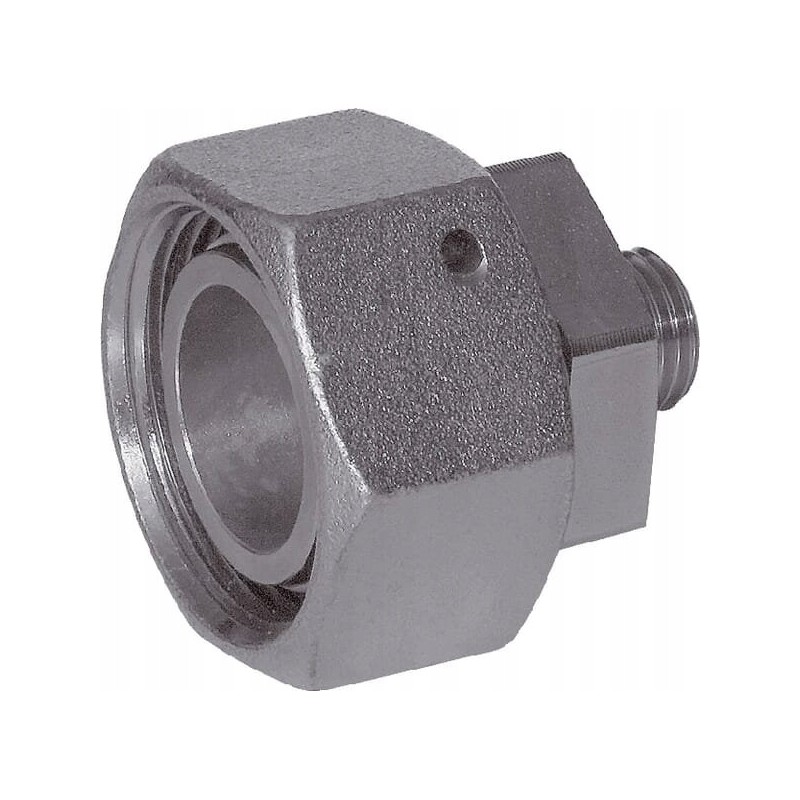

Straight connector with screws m36x2 28l m26x1 5 18l

Straight connector with nut M36x2 28L - M26x1.5 18L Parameters

Part number: REDSD2818L

Unit: Piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Straight - 2 sides connection

Connector type no. 1: Thread

Connector type no. 1 - male/female: Male

Connector thread diameter No. 1: M26

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 32 mm

Connector No. 1 Wrench Size: 32.0 mm

Connector No. 2 Type: Thread

Connector No. 2 Type - male/female: Female

Connection no. 2 thread diameter: M36

Connection no. 2 thread pitch: 2.00 mm

Connection no. 2 thread type: Metric

Wrench size for connector no. 2: 41.0 mm

DIN standard: 2401

Inner diameter : 15 mm

Length: 35.5 mm

Total length: 51.5 mm

Max. working pressure: 250 BAR

Internal diameter. sealing ring: 26 mm

Sealing washer thickness: 2 mm

Seal material: Nitrile rubber [NBR]

Series: L

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Viton

gasket available on request Pipe diameter

- 28 mm

- 18 mm
