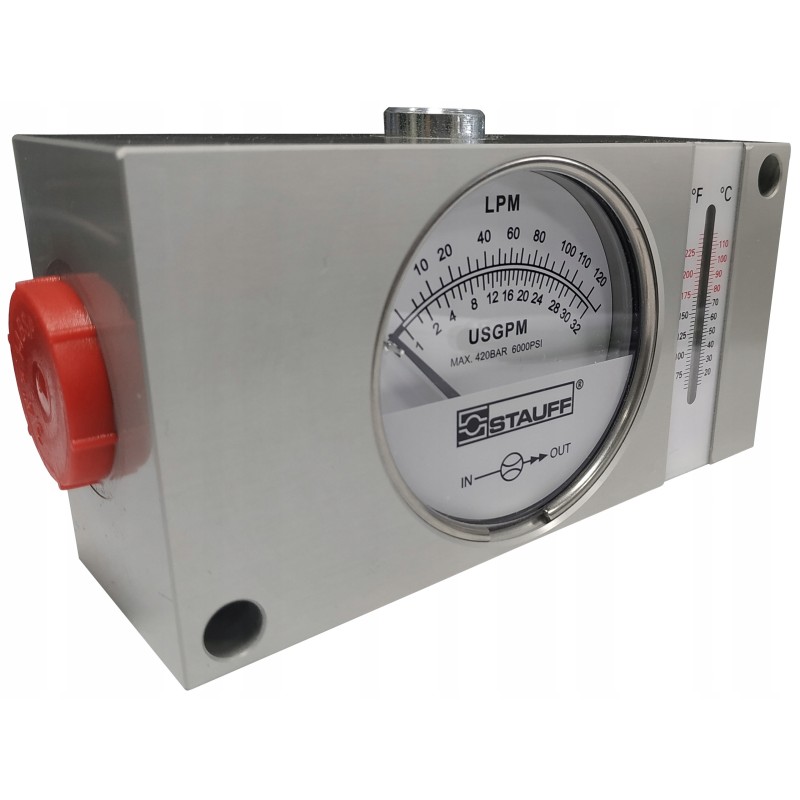

Flowmeter 5 120l 3 4 with thermometer

FLOW METER 5 - 120L 3/4'' WITH THERMOMETER SKRAW-MET CODE: [1921] Used to measure the flow, pressure and temperature of fluids in mobile and industrial hydraulics, as well as to control the working pressure.

SDM flow indicators they have a sharp-edged opening and a conical dosing piston that moves in proportion to changes in flow in relation to the spring.

In the no-flow condition, the piston closes the opening and the indicator shows zero. As the flow and pressure increase, the piston moves relative to the calibrated spring.

The piston movement is directly proportional to the flow rate and is magnetically coupled to the rotary pointer. During this function, a sharp-edged orifice minimizes the effect of viscosity.

Characteristics: suitable for mineral oil, HFC fluids and water

intended for installation on a production line

device mechanical (outside the working line)

flow indication in L/min and GPM

thread for connection to the pressure gauge on the top

The flow is shown on a calibrated scale in l/ min and gal/min.

Symbol: SDM-750-A-120-TTechnical specifications: Length: 146 mm

Height: 75 mm

Width: 50 mm

Manometer thread: G1/4'

Input thread (left): G3/4'

Output thread (right) : G3/4'

Max. working pressure: 420 bar

Temperature measurement range: 10°C .... 80°C
