Hydraulic hose cable ao dn12 m22 d 300 275bar

Hydraulic conduit with eyelet and screw AO 12/2 M22x1.5, 2-braid (2SN), 275 Bar, L-300 mm Flexible hydraulic conduits next to rigid seamless pipes are used in every power hydraulics system for fluid transfer. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose is made on the basis of a hydraulic hose that meets EN 853 standards. It is an ideal solution for hydraulic systems with an operating pressure not exceeding 275 Bar.

Hose specifications:

inner diameter: 12.5 mm, 1/2', dash: -08

outer diameter: 21.2 mm

inner layer: synthetic rubber

reinforcement: 2 steel wire braids

outer layer: synthetic rubber

pressure working: 275 Bar

bursting pressure: 1100 Bar

bending radius: 180 mm

temperature range: -40°C +100°C

standard: EN 853 2SN

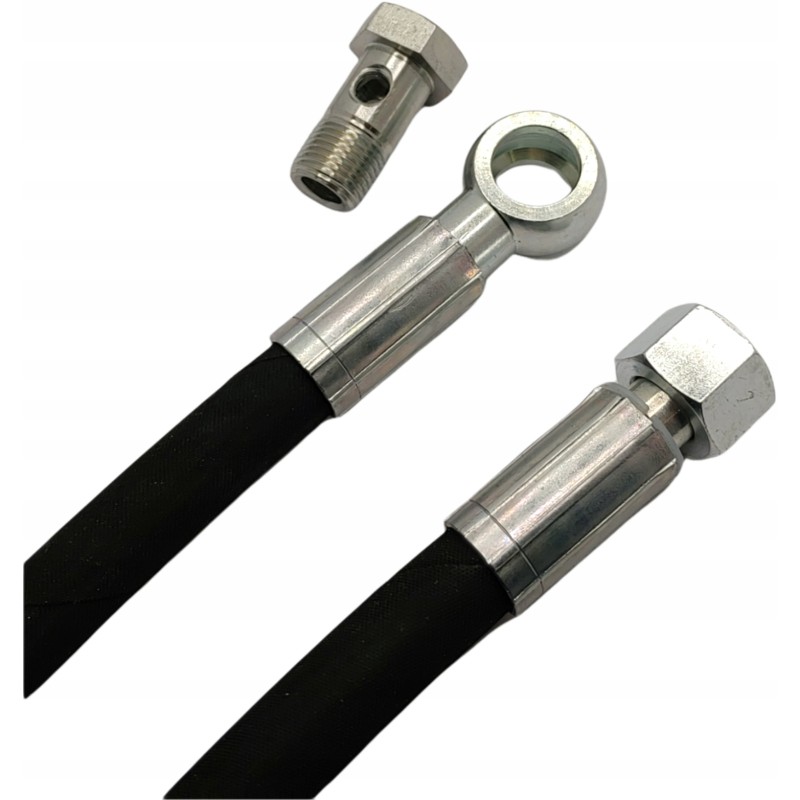

Cable with a straight DKOL metric tip with M22x1.5 internal thread on one side 15L (nut) on the other side, a ring terminal with a fi22 hole and an overflow screw with an M22x1.5 thread

Cable specifications:

length L - 300 mm

terminal 1: DKOL M22x1.5 15L

terminal 2: RNM M22 + screw M22x1.5

Cables available in other auctions in lengths: 300, 400, 500, 600, 700, 750, 800, 900, 1000, 1100, 1200, 1250, 1450, 1500, 2000, 2500, 3000, 3500, 4000, 45 00, 5000 , 6000, 7000, 8000, 9000 and 10000 mm.

We are able to produce a hose in any required size!

All our hydraulic hoses are cleaned at the appropriate stage of production, so the user can be sure of receiving a product ready for installation and long operation! In order to determine the flow value of a given hose dimension, you must use the appropriate table (see below).

The data is selected depending on the type of pipe:

pressure (supply) line

suction or return line

A ruler is necessary to determine the appropriate diameter of the hydraulic hose , one end of which we apply to the flow value (left line), the other to the flow velocity value (right line), depending on the place where the cable is used.

The flow velocity lines have ranges of values that depend on the individual characteristics of the system.

To determine the best parameters you need to select the average value from a given range, rounding the pipe dimension to the full size above the indication.

When designing and selecting pipes for a given system, you also need to pay attention to:

the twist angle of the ends, this is used in the case of the following types of pipes: elbow: elbow, eyelet: eyelet, elbow-eyelet

selecting the appropriate type of fitting depending on the place and working position of the hose

selecting the bending radius of the hose

avoiding twisting the hose during installation, which may cause its premature wear

appropriate protection of the hose against premature wear.

We offer many types of fittings and hydraulic hoses. If you have not found the solution you are interested in or are looking for a tailor-made product, you will find it here! Our cables are manufactured on the basis of the received order!
