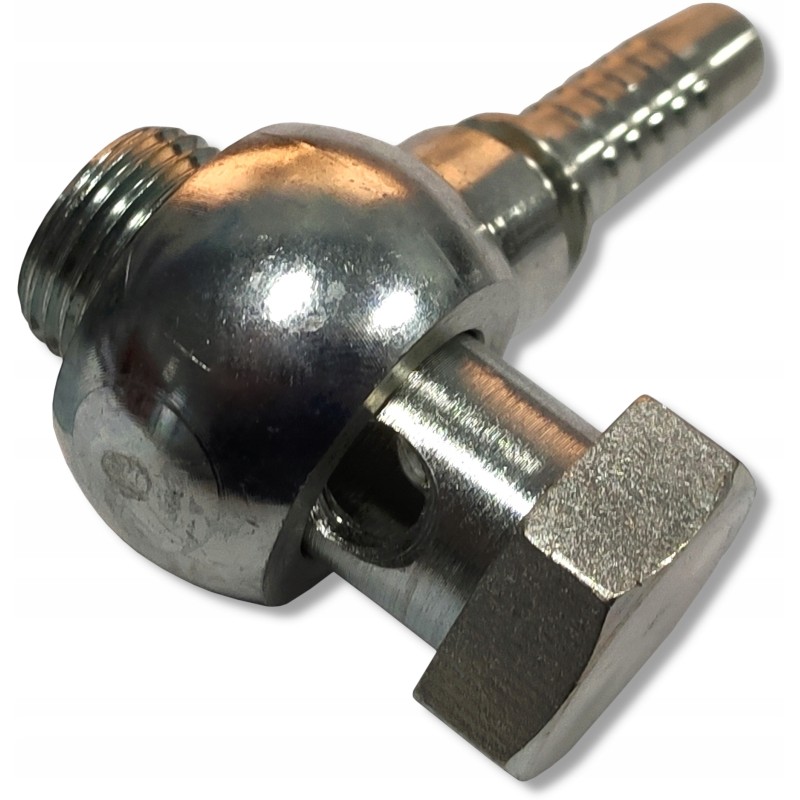

Eyelet ferrule 18 mm dn10 screw m18x1 5 banjo

Hydraulic eyelet ferrule - Fi 18 mm with screw M18x1.5 SKRAW-MET CODE: [2545]Eye end fittings also called 'banjo' end fittings - used for ferruling flexible hydraulic hoses to enable connection of wires with other elements.

Usually used when there is not much space in the hydraulic system for a knee switch, then an eyelet connector is used, which is tightened with a screw.

___The basic element of the production of hoses - is done by crimping the hose with a clamping sleeve using a press hydraulic or crimping machine.

At every stage of production, precision and quality supported by detailed measurements.

The most modern CAD/CAM and ERP/MRP software solutions allowing the production of details for the most demanding applications.

Cutter symbol: 10 RNM 18/18 + SRTechnical specification:Cutter sizes: DN10 - 18 mm

DN dimension for the tube: 10 mm

Screw thread: M18x1, 5

Material: Free-cutting carbon steel with zinc coating - Corrosion resistant
