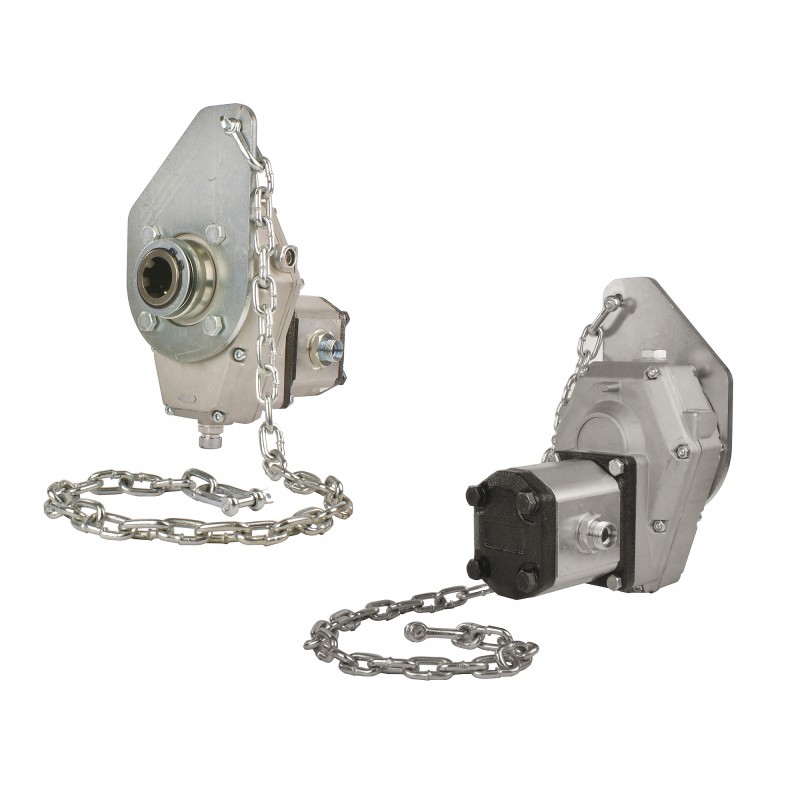

Hydraulic pump 45l, gearbox, power take-off

SMALL 'MINI' MULTIPLICATOR SET WITH A HYDRAULIC PUMP AND A SAFETY COLLAR. BEFORE TURNING Set composition:

multiplier 1:3.8

safety collar

gear pump 22 cm3

connecting clutch

screws and connections

Production:

Original product of the Hydrolider brand, symbol: 1.45.05.046

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

A compact set, ideally suited for small and medium-sized forestry, construction machines, tractors and other machines with a PTO shaft at the output. The small gear allows the set to be installed in hard-to-reach places and on tractors and machines that have little space to install the gear.

Used wherever the original hydraulic pump installed in the machine is not strong and efficient enough or when an additional, new hydraulic system is needed to control the newly installed equipment.

Technical data of the set:

The gearbox is mounted on the PTO shaft using a latch, this solution makes it quite quickly mount or dismount if it turns out that we need the PTO shaft for another machine.

Efficiency of the set:

Efficiency depends on the revolutions of the PTO shaft to which the set is connected. The higher the PTO revolutions, the more efficient the pump.

Efficiency of the set in l/min relative to the PTO shaft revolutions:

220 rpm per PTO efficiency 19L/min

320 rpm on PTO, capacity 27L/min

430 rpm on PTO, capacity 36L/min

540 rpm on PTO, capacity 45L/min

Efficiency of the set in l/min relative to engine revolutions in tractors C-330, C-360, C-385, ZETOR, MF 255 and derivatives:

800 rpm on the engine efficiency 19L/min

1200 rpm on the engine, efficiency 27L/min

1600 rpm on the engine, efficiency 36L/min

2000 rpm on the engine, efficiency 45L/min

Technical data of the gearbox:

Transmission ratio: 1:3.8 Max power: 10 kW

Fits a typical 1.3/8' PTO shaft

Rotations on the shaft PTO: max 540 rpm

Has a sight glass for checking the gear oil level.

Possibility of working with pumps of the second group

Material: aluminum body, steel gears

Requires filling with gear oil.

When used for the first time, to increase the life of the gear, it is recommended to change the oil after the first 50 operating hours.

Pump technical data:

Geometric volume: 22 cm3/rev

Rotation direction: right

Maximum rotation speed: 2500 rpm

Maximum working pressure: 25 MPa

Maximum pressure in cooperation with the gearbox: up to 14 MPa

Technical data of the flange:

The flange stabilizes the multiplier during operation, and when the PTO shaft is engaged, it blocks the multiplier's rotation. Thus, it protects the entire set against damage.

Material: steel

Coating: galvanized

Sheet thickness: 8mm

Chain length: 80cm

Important!!!

Agricola's sets have been designed in such a way that they can be easily assembled by yourself. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent untwisted.
