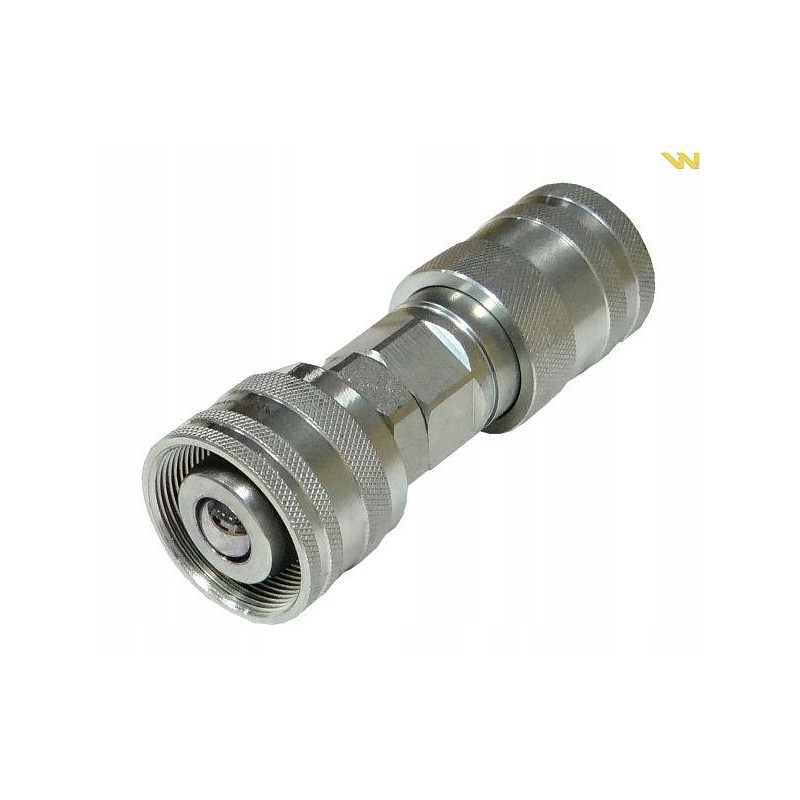

Warynski screwed Euro socket plug reduction

HYDRAULIC QUICK CONNECTOR Reduction from the old type to the new Waryński screwed EURO plug/socket. Waryński screwed EURO socket/plug reduction - on one side there is an old type screwed agricultural plug and on the other side there is a EURO socket (ISO-7241-A) in the Push-Pull version. The most popular hydraulic reducing valves with a very wide range of applications in agriculture. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions of agricultural machinery. Thanks to the reducing valves, you can easily change the connection to a higher standard of EURO (ISO-7241-A) Waryński hydraulic quick connectors in the standard and Push-Pull versions.

Specification:

Collective packaging: 1 pc

Operating temperature: from -25°C to +120 °C

Max working pressure: 25.0 MPa / 250 bar

Type of plug: Screwed agricultural (old type)

Type of socket: EURO (ISO-7241-A)

Application:

Reducing socket/plug EURO twisted Waryński used in machines agricultural. Due to the design of old-type connectors with a ball socket without seals, it is inevitable that trace amounts of oil will appear at the point of direct contact between the socket and the plug in the disconnected position. This phenomenon will be unnoticeable in the new type ISO 7241-A Waryński ISO 7241-A (EURO) Waryński and ISO 16028 (dry-cut) Waryński connectors.
