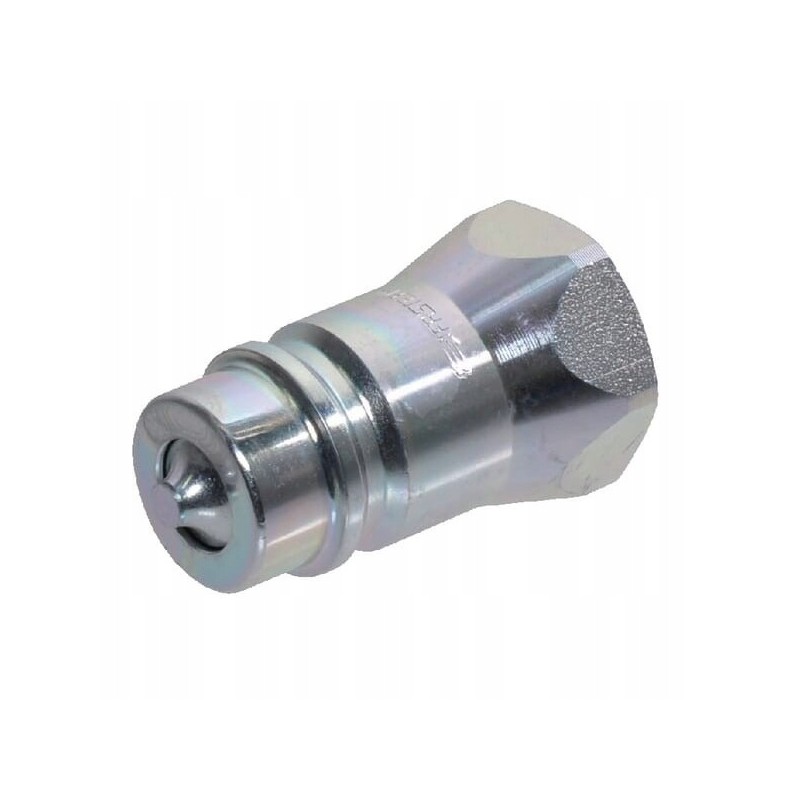

Quick connector plug 1 2 bsp internal thread

Quick connector plug 1/2 BSP thread internal INDEX: 2NV12GASM

Material: Carbon steel

Specifications: - Oil flow control flap on the rear side of the spring

Benefits: - Prevents blockage of the oil flow in the event of high return flow

Features: - In combination with self-shutoff couplings (e.g. 3CFPV) can be connected under pressure on the plug side

Valve type: Poppet shape

Shape: Straight - 2 sides connection

Application: - Reverse flow lines - Universal use - Mineral oil based fluids

Size: 12.5mm

Outside diameter: 30mm

ISO standard: 7241-A

Series: 2NV

Connector thread diameter: 1/2 inch

Connection diameter: 20.5 mm

Surface treatment: White passivated

Connector thread type: BSP

Total length: 47 mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight : 92.4g

Working pressure: 300BAR

Type of connector no. 2 - male/female: Female

Possibility of connecting under pressure: Yes

Working temperature max: 125°C

Working temperature min: -25°C

Type of quick connector lock: Balls along the circumference

Connection method: Sleeve offset

Disconnection method: Sleeve offset

Connector type no. 2: Thread

Connection thread diameter no. 2: 1/2 inch

Size (code): BG 3

Connection thread type no. 2: BSPP

Number of turns per inch of thread of connector No. 2: 14

Flow at pressure 2 bar: 75l/min

Type of connector No. 1: Quick connector

Type of connector No. 1 - male/female: Male

Wrench size of connector No. 1: 27 mm

Diameter of connection No. 1: 0.81 inch
