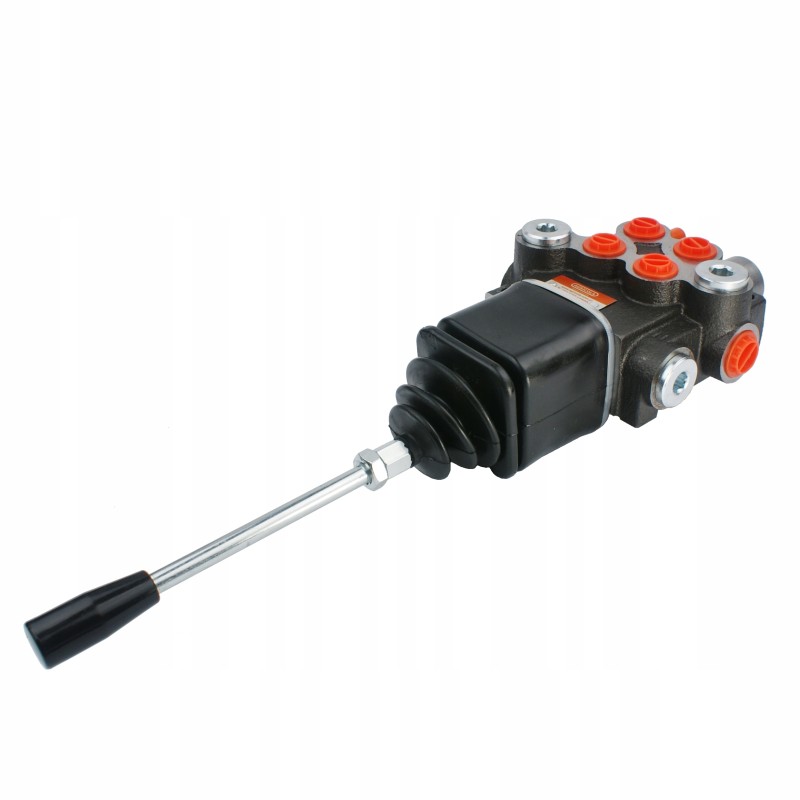

2-SECTION HYDRAULIC DISTRIBUTOR P40 WITH ONE FLOATING SECTION, CONTROLLED BY A BUILT-UP JOYSTIC Production:

Original product of the Badestnost brand, manufacturer's symbol: 02P40 A1K16+JOY, symbol: 1.10.00.029.2

< Mr />Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Floating section, also known as free flow, used, among others, for snow plows or TUR front loaders. It causes free movement of the piston rod in hydraulic cylinders. Protects against damage elements that have direct contact with the ground, e.g. plow blade.

Technical data:

Recommended oil flow in the system: 0 - 40 l/min. Example control: two double-acting actuators.

Possibility of serial connection to an existing system (pressure sleeve required).

Control:

Six-position joystick (1 - 2 - 0 - 3 - 4 - 5), on a spring, i.e. it returns to the vertical on its own:

Neutral position 0 (joystick set vertically), the piston rods of both actuators are stationary - the oil goes to the overflow.

Working position 1 (joystick lever set in the diagonal forward position) the piston rod of the first actuator extends.

Position 2 floating with a latch (lever set in the maximum forward position) the piston rod of the first actuator works loosely, extends retracts freely under the influence of the acting forces.

Working position 3 (joystick lever set in a backward diagonal position), the piston rod of the first actuator retracts.

Working position 4 (joystick lever set in diagonal position to the left), the piston rod of the second actuator extends.

Working position 5 (joystick lever set in diagonal position to the right), the piston rod of the second actuator retracts.

On the right, a hydraulic diagram of the offered distributor:

Connection:

Supply from the pump (P1, P2): BSP 1/2'' internal thread

Return to the tank (T1, T2) : BSP 1/2'' internal thread

Sections (A1, A2, B1, B2): BSP 3/8'' internal thread

Series connection (N): internal thread BSP 1/2'

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 10 l/min

190 bar at 20 l/min

200 bar at 30 l/min

210 bar at 40 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section
