Hydraulic hose line AK DN20 M30 D 900 215bar

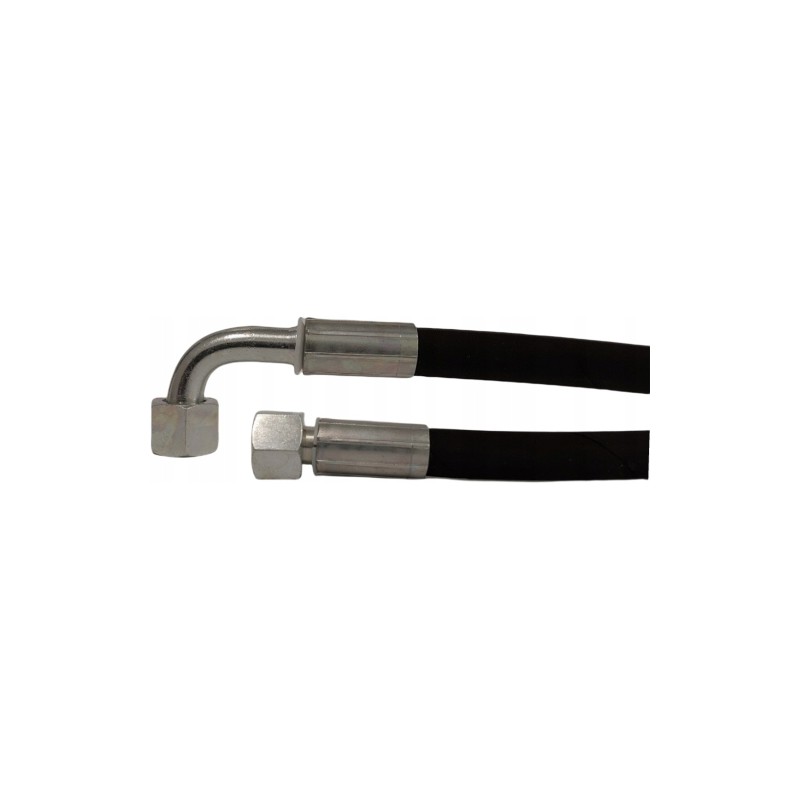

Hydraulic hose with 90° elbow AK 20/2 M30x2.0, 2-braid (2SN), 215 Bar, L-900 mm Flexible hydraulic hoses next to rigid seamless pipes are used in every power hydraulics system for fluid transfer. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose is made on the basis of the North-Fighter hydraulic hose and meets the EN 853 2SN standards while offering an attractive price. It is an ideal solution for hydraulic systems with an operating pressure not exceeding 250 Bar.

Hose specifications:

internal diameter: 19.5 mm, 3/4', dash: -12

external diameter: 28.3 mm

internal layer: synthetic rubber

reinforcement: 2 steel wire braids

outer layer: synthetic rubber

working pressure: 215 Bar

bursting pressure: 850 Bar

bending radius: 240 mm

temperature range: -40°C +100°C

standard: EN 853 2SN

Cable with on one side a DKOL straight metric tip with internal thread M30x2.0 22L (nut) and on the other side a DKOL-90° elbow tip with internal thread M30x2.0 22L (nut)

Cable specifications:

length L - 900 mm

end 1: DKOL M30x2.0 22L

end 2: DKOL-90° M30x2.0 22L

Cables available in other auctions in lengths: 300, 400, 500, 600, 700, 750, 800, 900, 1000, 1100, 1200, 1250, 1450, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 6000, 7000, 8000, 9000 and 10000 mm.

We can produce hose in any required size!

You clean all our hydraulic lines combined are at the appropriate stage of production, thanks to which the user can be sure of receiving a product ready for installation and long-term operation! To be able to determine the flow value of a given hose dimension, you must use the appropriate table (see next).

The data is selected depending on the type of hose:

pressure (supply) line

suction or return line

To determine the appropriate diameter of the hydraulic hose, you need a ruler, one end of which is applied to the flow value (left ruler), the other to the flow speed value (right ruler), depending on the place of use of the hose.

Flow velocity lines have ranges of values that depend on the individual characteristics of the system.

To determine the best parameters, you need to select the average value from a given range, rounding the pipe dimension to the full size above the indication.

When designing and selecting pipes for a given system, you also need to pay attention to :

twisting angle of the ends, this applies to the following types of hoses: elbow:elbow, eyelet:eyelet, elbow-eyelet

selection of the appropriate type of end piece depending on the location and working position of the hose

selection of the hose bending radius

avoidance of hose twisting during installation which may cause it to wear out earlier.

Appropriate protection of the hose against premature wear.

We offer many varieties of hydraulic fittings and hoses. If you have not found the solution you are interested in or are looking for a tailor-made product, you will find it here! Our cables are manufactured on the basis of the received order!

Return of ordered products is possible after prior acceptance by the seller. Otherwise, 50% of the value of the goods will be refunded!
