Cnv02215m quick connector plug cnv 1 2 internal m22x1 5

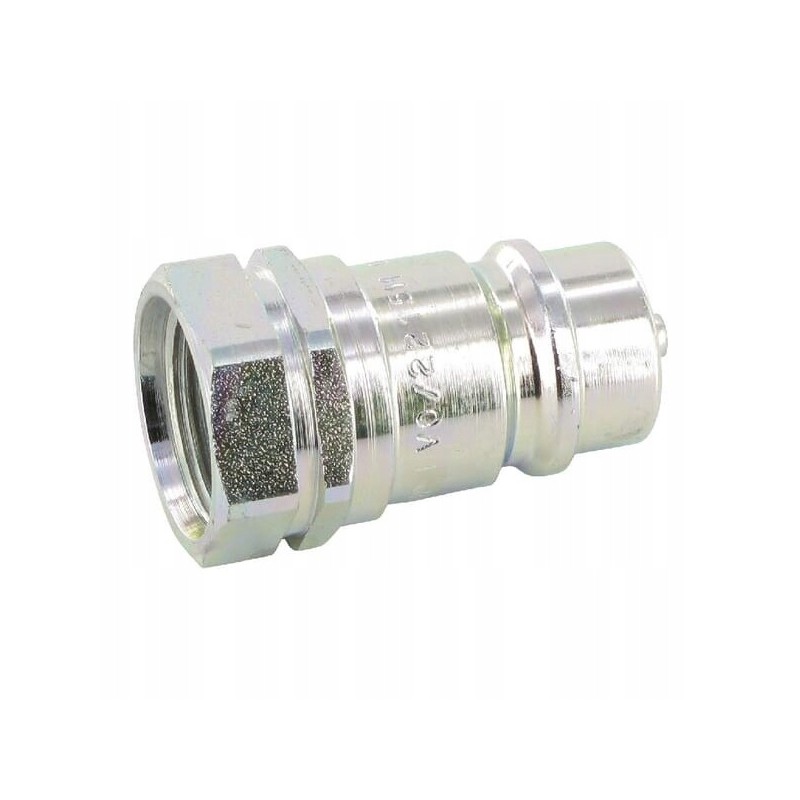

Quick connector plug CNV 1/2 internal thread M22x1.5 15L INDEX: CNV02215M

Length: 44mm

Material: Carbon steel

Technical information: - Connection is made by pressing the plug (one-handed operation)

Features: - Induction hardening in places exposed to rapid wear - Fits CPV Faster sockets

Valve type: Mushroom valve

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Mineral oil-based fluids

Size: 12.5 mm

Outer diameter: 30 mm

ISO standard: 7241-A

6149-1

Series: CNV

Connection diameter: 20 .5mm

Surface treatment: White passivated

Connector thread type: Metric

Total length: 61 mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 114.2g

Working pressure: 250BAR

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: Yes

Max operating temperature: 125°C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press to connect

Connector thread pitch No. 2: 1.5mm

Disconnect method: Pull to disconnect

Connector No. 2 type: Thread

Diameter at plug end: 20.5 mm

Connection No. 2 thread diameter: M22

Connection No. 2 thread type: Metric

Flow at pressure 2 bar: 75l/min

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Male

Connector no. 1 thread diameter: 22 mm

Connector no. 1 thread pitch: 1.5 mm

Connector no. 1 wrench size: 27 mm

Connection Diameter No. 1: 0.81 inch
