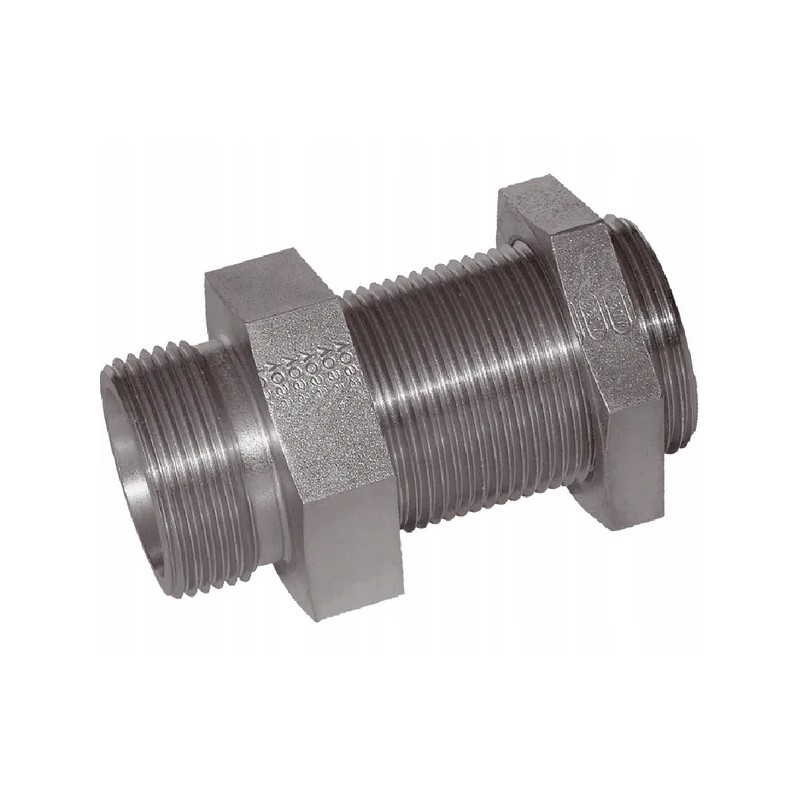

Gss12l straight bulkhead connector m18x1 5 12l

GSS12L Straight bulkhead connector M18x1.5 12L EAN

8719607043465

Advantages

Limited risk of leakage

Product details

For direct connection to metric hose nut or pre-assembled fitting

High corrosion resistance

Hydraulic hoses

Hydraulic pipes

Shape< p>

Straight - 2 sides of connection

Connector type no. 1

Cutting ring

Connector type no. 1 - male/female

Male

Connection Diameter

12 mm

Connector No. 1 Thread Diameter

M18

Pitch Connector No. 1 Thread

1.50 mm

Connector Thread Type

Metric

Wrench Size for Connector No. 1

24.0 mm

Connector Type No. 2

Cutting Ring

Connector Type No. 2 - Male/Female

Male

Diameter of connection no. 2

12 mm

Length of connection no. 2

39 mm

Thread diameter of connection no. 2

M18

Thread pitch of connection no. 2

1.50 mm

Thread type of connection no. 2

Metric

Wrench size for connector no. 2

22.0 mm

Pipe diameter

12 mm

DIN standard

2353

80750

2401

Internal diameter

10 mm

Total length

53 mm

Surface treatment

Zinc

Nickel-plated

Working pressure max.

400 BAR

Series

L
