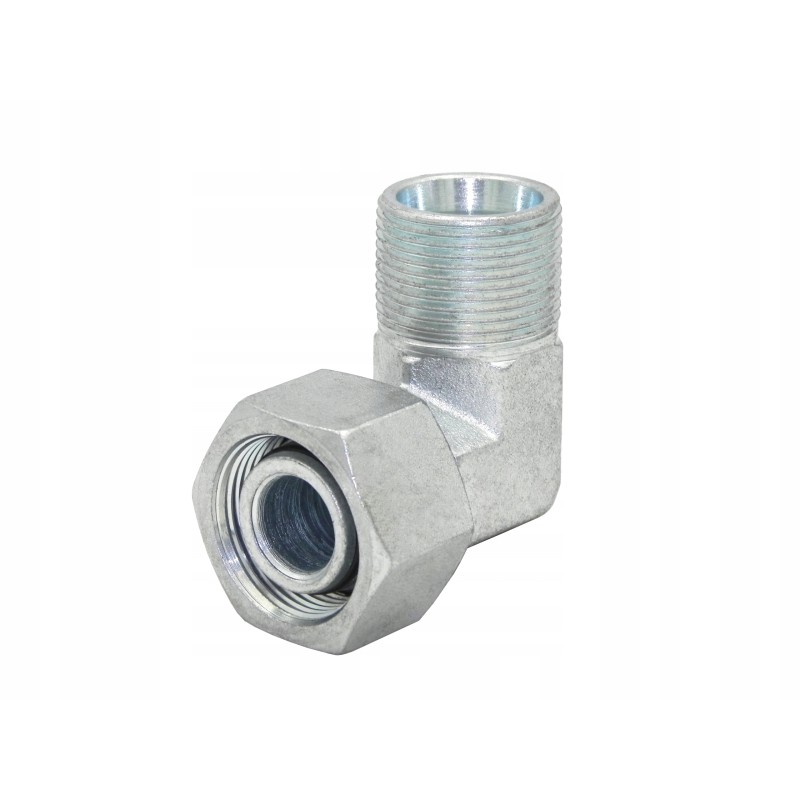

HYDRAULIC ELBOW CONNECTOR WITH NUT M30x2 22LApplication:
It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
Elbow joint with a conical self-sealing clamping tightening. Designed to connect two hydraulic hoses or to connect with other connectors with the same cone system.
Technical data:
Thread on one side: external metric M30x2 22L - light standard
Thread on the other side: internal metric M30x2 22L - light standard
Nominal pressure: 180bar
Maximum pressure: 230bar
Liquid type: hydraulic oil
Material:
weldable steel, galvanized, corrosion-resistant
We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
We issue invoices
We invite you to cooperate
