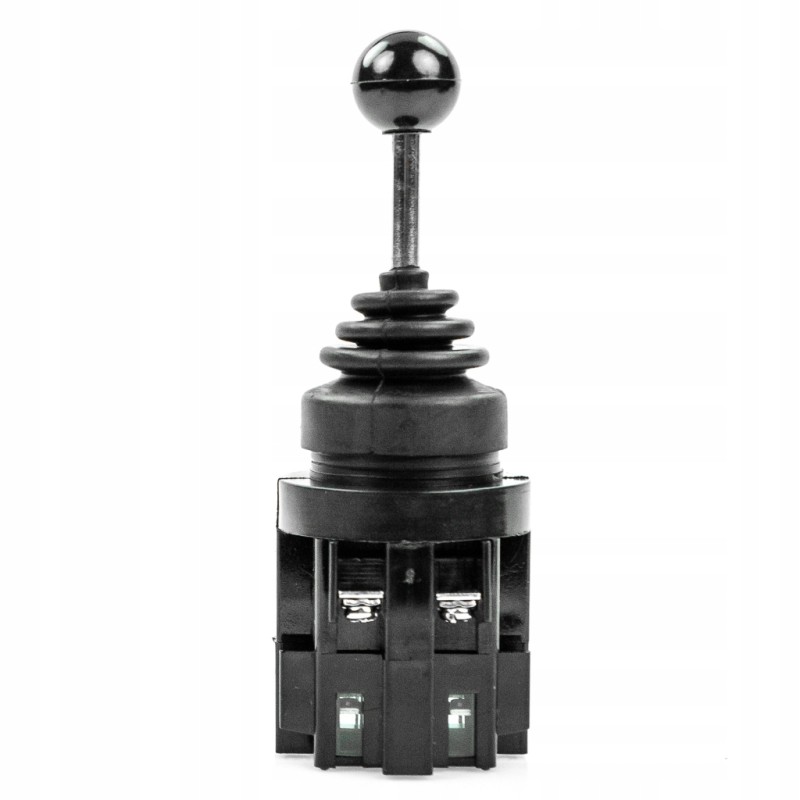

Joystick 4 positions unstable manipulator

Joystick 4 Positions Unstable Manipulator QUALITY PROVIDED BY GRANITE PARTS GERMANY

Brand: AGTECH / GRANIT PARTS GERMANY

Article number: 667XMR302

Reference number: 85020153

Technical parameters:

Lever manipulator

(Joystick with 4 unstable positions and a stable center position)

Designed for installation in a Ø 30 mm hole.

Installation is carried out by unscrewing the lever ball, unscrewing the ring with the cover,

inserting the joystick through the hole and screwing the ring and ball back on.

They have a rubber sealing cover that protects against dust, water and is resistant to oil.

Specification:

Number of positions: 4

Operating temperature: -20....50°C

Contact assemblies: 4 x NO

Dimensions: 51 x 51 x ....mm

Lever material: Steel

Mode of operation: Monostable

AC contact load capacity: 6A / 250V (with resistive load)

Load capacity of DC contacts: 2.2A / 110V (with resistive load)

Insulation resistance min. : 100MΩ

Test voltage: 2.2kV

Mechanical durability: 5*105 cycles

Electrical durability: 5*105 cycles
