Multiplier 1 3 8m g pump 28l wl hydrolider

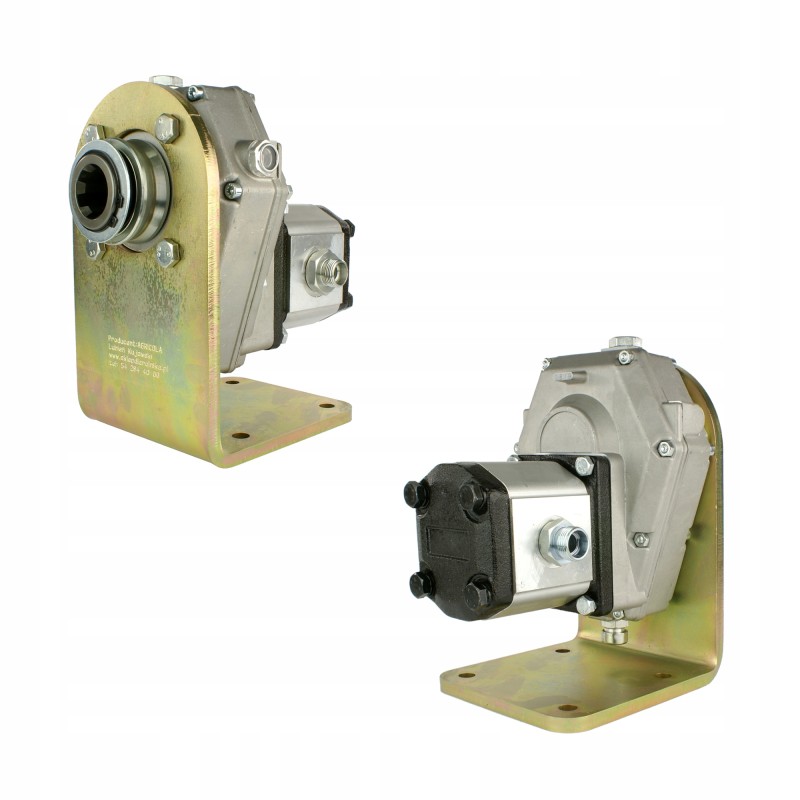

SMALL 'MINI' MULTIPLIER IN A SET WITH A HYDRAULIC PUMP AND A BRACKET MOUNTING TO THE BASE Set includes:

multiplier 1:3.8

mounting bracket

gear pump 14 cm3

connecting coupling

screws and connections

Production:

Original product of the Hydrolider brand, symbol: 1.45.05.030

Application :

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and industry in general.

A compact set, ideal for small and medium-sized forestry, construction machines and tractors and others with a PTO shaft at the output. The small gear allows the set to be installed in hard-to-reach places and on tractors and machines that have little space to install the gear.

Used wherever the original hydraulic pump installed in the machine is not strong and efficient enough or when an additional, new hydraulic system is needed to control the newly installed equipment.

Technical data of the set:

The gearbox is mounted on the PTO shaft using a latch, this solution makes it quite quickly mount or dismount if it turns out that we need the PTO shaft for another machine.

Efficiency of the set:

Efficiency depends on the revolutions of the PTO shaft to which the set is connected. The higher the PTO revolutions, the more efficient the pump.

Efficiency of the set in l/min relative to the revolutions on the PTO shaft:

220 rpm on the PTO, efficiency 12L/min

320 rpm on PTO capacity 17L/min

430 rpm on PTO capacity 23L/min

< p>

540 rpm on PTO capacity 28L/min

Efficiency of the set in l/min relative to engine revolutions in C-330, C-360, C-385, ZETOR, MF 255 and derivative tractors :

800 rpm on the engine, efficiency 12L/min

1200 rpm on the engine, efficiency 17L/min

1600 rpm on the engine, efficiency 23L/min

2000 rpm on the engine, efficiency 28L/min

Technical data of the gearbox:

Ratio ratio: 1:3.8 Max power: 10 kW

Fits a typical 1.3/8' PTO shaft

RPM speed: max 540 rpm< p>

It has a sight glass for checking the gear oil level.

Possibility of working with pumps of the second group

Material: aluminum body, steel gears

Requires filling with gear oil

When using for the first time, to increase the life of the gear, it is recommended to change the oil after the first 50 operating hours.

Technical data of the pump:

Geometric volume: 14 cm3/rev

Rotation direction: right

Maximum rotation speed: 2500 rpm

Maximum working pressure: 25 MPa

Maximum pressure in cooperation with the gear: up to 22 MPa

Technical data of the bracket:

The bracket stabilizes the multiplier during operation and allows the multiplier to be attached to the base anywhere on the machine, away from the tractor or drive unit. Material: steel, Coating: galvanized, Sheet thickness: 8mm

Important!!!

Agricola's sets have been designed in such a way that they can be easily assembled by yourself. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent untwisted.
