Diagnost df quick connector plug 1 4 internal 7 16

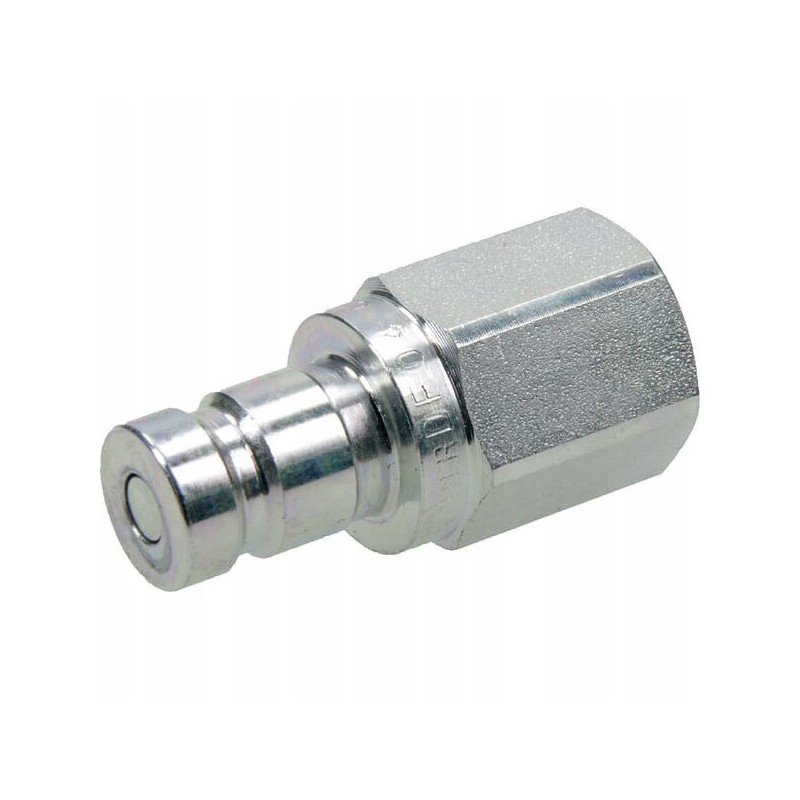

Diagnostic quick connector DF plug 1/4 internal thread 7/16 UNF ORB INDEX: DF0414SAEM

Material: Steel

Specifications: - Flat sealVery small size

Benefits: - Minimum degree of leakage - Connection without air inclusions

Features: - Intended as a diagnostic connector - Connection is made by inserting the plug (one-handed operation) - Disconnects by retracting the sleeve

Valve type: Flat

Shape: Straight - 2 sides connection

Application: - Point measurement systems - Mineral oil based fluids

Size: 6.3 mm

Outer diameter: 21 mm

ISO standard: 15171-1

11926-1

Connection: dB

Surface treatment: Chrome plated

Connector thread type: BSP

Total length: 42mm

Seal material: Nitrile rubber [NBR]

Note: To disconnect, move the locking sleeve of the coupler back.

Weight: 54.6g

Working pressure: 470BAR

Type of connector no. 2 - male/female: Female

Possibility of connecting under pressure: No

Max operating temperature: 125°C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press, to connect

Connection No. 2 diameter: 12.7 mm

Disconnection method: Sleeve offset

Connection No. 2 type: Push-in

Connection No. 2 thread diameter: 7/16 inch

Connection No. 2 thread type: UNF

Flow at 2 bar pressure: 2l /min

Connector No.1 Type: Thread

Connector No.1 Male/Female Type: Male

Connector No.1 Thread Diameter: 12.55mm

Connector No.1 Wrench Size: 19mm

Connection No.1 Diameter: 0.49inch
