Hydraulic hose line AK DN16 M26 D 1250 250bar

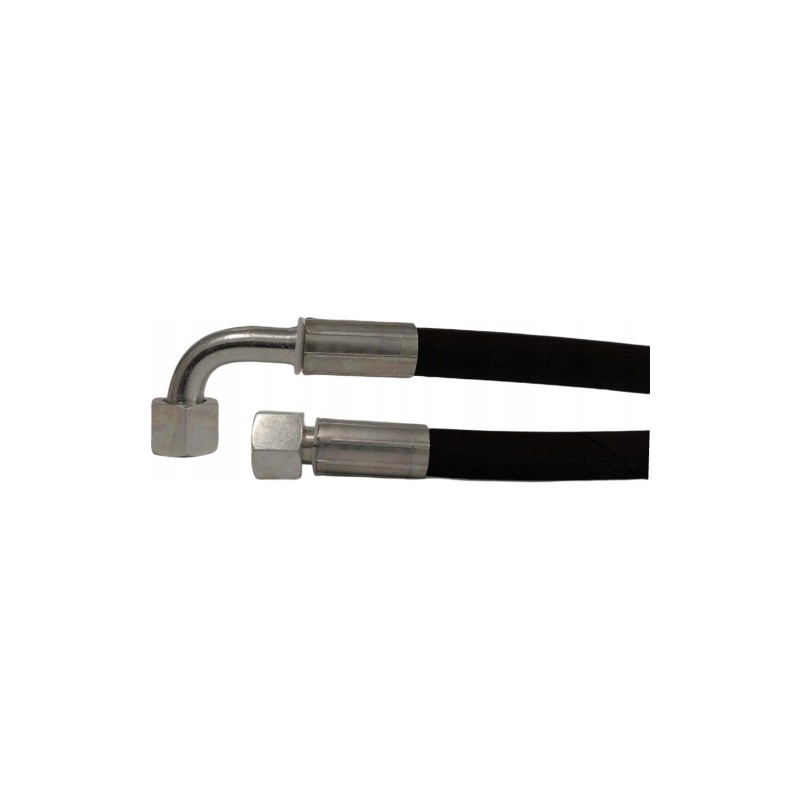

Hydraulic hose with 90° elbow AK 16/2 M26x1.5, 2-braid (2SN), 250 Bar, L-1250 mm Flexible hydraulic hoses next to rigid seamless pipes are used in every power hydraulics system for fluid transfer. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose is made on the basis of the North-Fighter hydraulic hose and meets the EN 853 2SN standards while offering an attractive price. It is an ideal solution for hydraulic systems with an operating pressure not exceeding 250 Bar.

Hose specifications:

internal diameter: 15.8 mm, 5/8', dash: -10

external diameter: 24.4 mm

internal layer: synthetic rubber

reinforcement: 2 steel wire braids

outer layer: synthetic rubber

working pressure: 250 Bar

bursting pressure: 1000 Bar

bending radius: 200 mm

temperature range: -40°C +100°C

standard: EN 853 2SN

Cable with on one side a DKOL straight metric tip with internal thread M26x1.5 18L (nut) and on the other side a DKOL-90° elbow tip with internal thread M26x1.5 18L (nut)

Cable specifications:

length L - 1250 mm

end 1: DKOL M26x1.5 18L

end 2: DKOL-90° M26x1.5 18L

Cables available in other auctions in lengths: 300, 400, 500, 600, 700, 750, 800, 900, 1000, 1100 , 1200, 1250, 1450, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 6000, 7000, 8000, 9000 and 10,000 mm.

We are able to produce a hose in every required size!

All our hydraulic cables are cleaned at the appropriate stage of production, so the user can be sure of receiving a product ready for installation and long-term operation! To determine the flow value of a given hose dimension, use the appropriate table (see next).

The data is selected depending on the type of hose:

pressure (supply) line

suction or return line

To determine the appropriate diameter of the hydraulic hose, you need a ruler, one end of which is placed on the flow value (left ruler), the other on the flow velocity value (right ruler), depending on the place of use of the pipe .

Flow velocity lines have ranges of values that depend on the individual characteristics of the system.

To determine the best parameters, you need to select the average value from a given range, rounding the pipe dimension to the full size above the indication.

When designing and selecting pipes for a given system, you also need to pay attention on:

twist angle of the ends, this is used in the case of the following types of hoses: elbow:elbow, eyelet:eyelet, elbow-eyelet

selection of the appropriate type of end piece depending on the place and working position of the hose

selection of the hose bending radius

to avoid twisting the hose during installation, which may result in premature wear.

Proper protection of the hose against premature wear.

We offer many varieties of hydraulic fittings and hoses. If you have not found the solution you are interested in or are looking for a tailor-made product, you will find it here! Our cables are manufactured on the basis of the received order!
