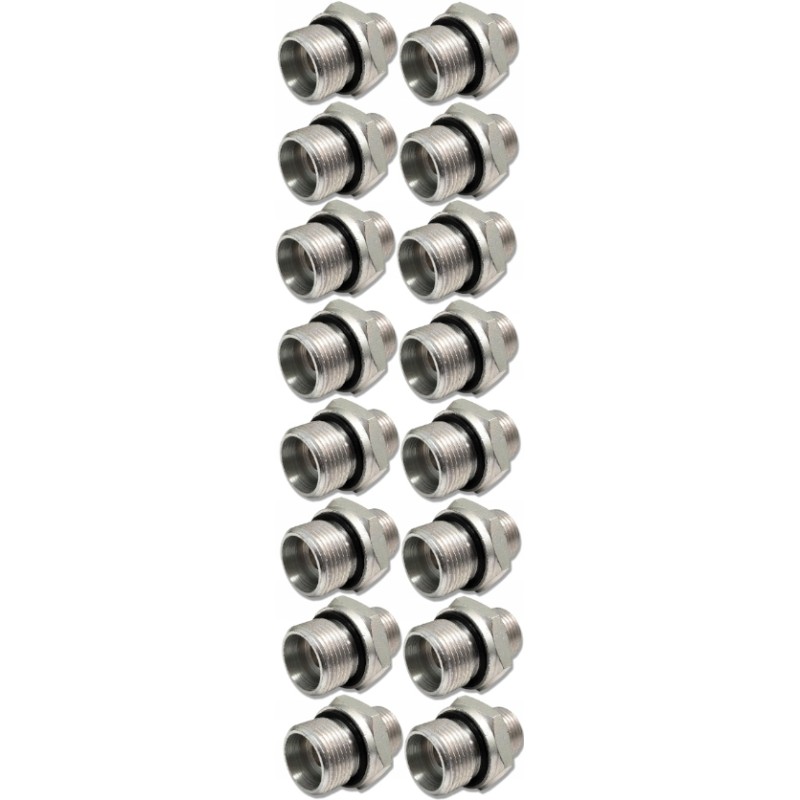

Straight nipples with a gasket for the distributor 7 sec 40l

SET OF CONNECTIONS FOR A 7-SECTION HYDRAULIC DIVIDER, 40L/min, SKRAW MET CODE: [8386] MANUFACTURER: SKRAW MET GROUP (SM-G) Application: Hydraulic connections are perfect for hydraulically powered machines and devices. They can be used in agriculture, horticulture, forestry and construction.

They allow you to connect a hydraulic distributor with pipes.

The set includes:

2x BSP connection: 1/2' - M22x1.5 [1388]

14x BSP connection: 3/ 8'- M18x1.5 [1707]

Technical data: The set includes a supply, return and actuator connection. Each connection has a rubber seal, so there is no need to add gaskets.

Threads: POWER SUPPLY:

Thread on the distributor side, inch BSP: 1/2'

Thread on the hydraulic conduit side: M22x1.5

RETURN:

Thread on the distributor side, inch BSP: 1/2'

Thread on the hydraulic conduit side: M22x1.5

FOR THE ACTUATOR:

Thread on the distributor side, inch BSP : 3/8'

Thread on the hydraulic line side: M18x1.5

Material:

corrosion-resistant galvanized steel

rubber seals
