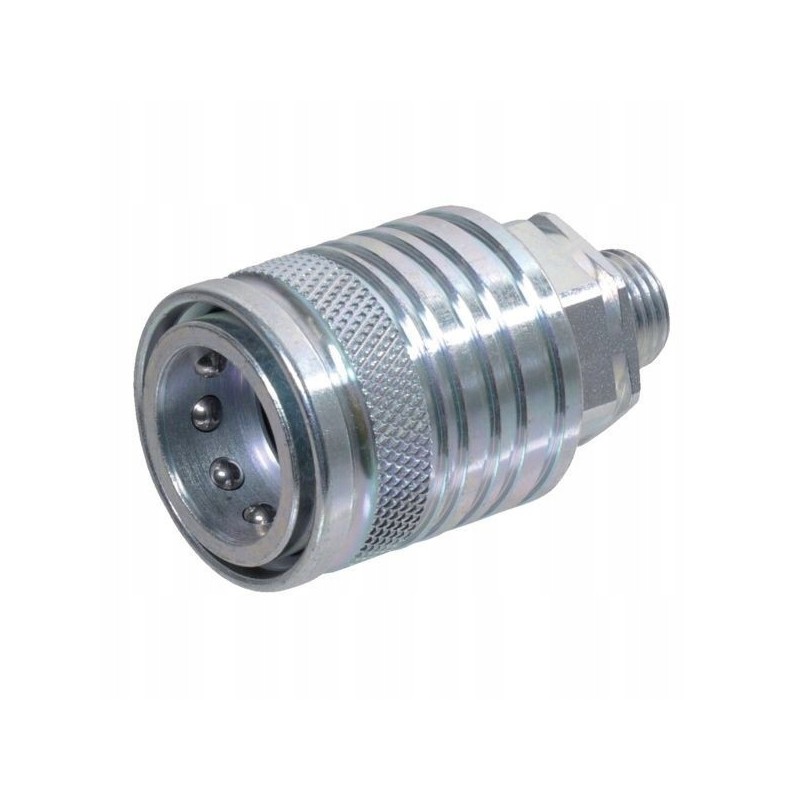

Skpf12l16 quick connector iso 12 5 m16x1 5 10l

Quick connector ISO 12.5 M16x1.5-10L - socket INDEX: SKPF12L16

Features: - Standard agricultural connector - Push & Pull principle - Tear-off function - With double-sided shut-off - Axial actuation of the locking sleeve in both directions (double-sided action)

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Municipal technology - Mineral oil based fluids

Outside diameter: 38mm

ISO standard: 7241-1-A

Connection: dB

Connection diameter: 20.5mm

Surface treatment: White passivated

Total length: 70mm

Seal material: Nitrile rubber [ NBR]

Teflon (PTFE)

Interchangeable with: Faster CPV / Faster CNV / Faster ANV

Operating pressure: 250BAR

Possibility of connecting under pressure: No

Operating temperature max: 100°C

Operating temperature min: -30°C

Type connection: socket

Diameter of connection no. 2: 10 mm

Thread pitch of connector no. 2: 1.5 mm

Type of connector no. 2: Thread

Thread diameter of connection no. 2: M16

Size (code): BG 3

Thread type of connection no. 2: Metric

Connector Type #1: Quick Connect

Connector Type #1 - Male/Female: Male
