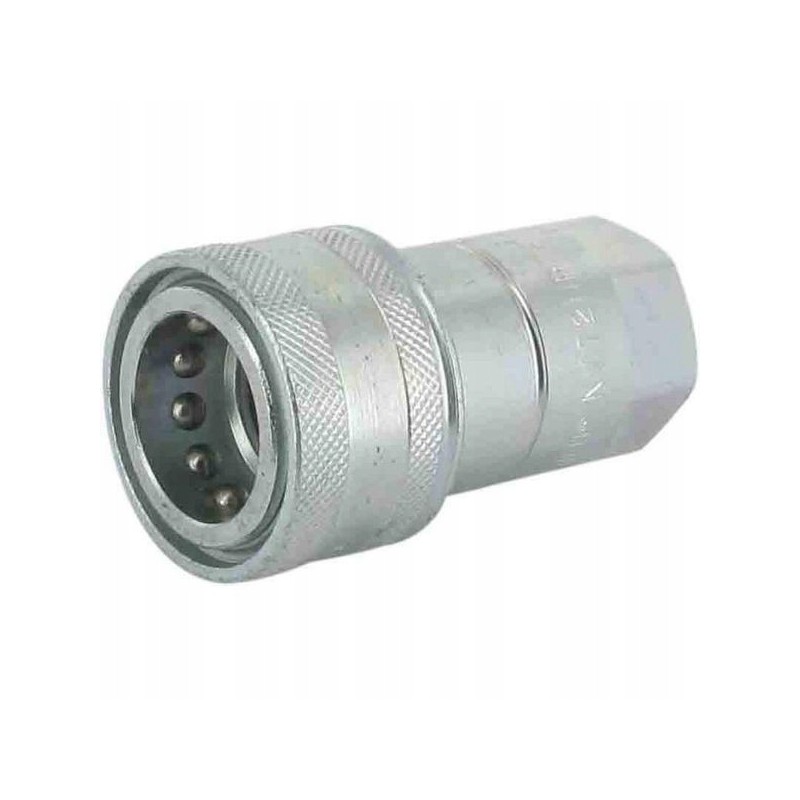

Nv12nptf quick connector 1 2 npt ig

1/2 NPT IG quick connector INDEX: NV12NPTF

Material: Steel

Specifications: - Easy connection thanks to light springs in the connector sleeve

Benefits: - Easy to operate

Features: - Axial rearward actuation of the locking sleeve (single-acting) - Induction hardening in areas subject to rapid wear - No break-off function - Large number of locking balls

Valve type: Mushroom head

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Municipal technology - Viticulture - Mineral oil based fluids

Size: 12.5 mm

Outer diameter: 38 mm

Standard ISO: 7241-A

Series: NV

Connector thread diameter: 1/2 inch

Connection diameter: 38 mm

Surface treatment: White passivated

Connector thread type: NPTF

Total length: 88 mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 255.6 g

Working pressure: 300BAR

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: No

Working temperature max: 125°C

Working temperature min: -25°C

Type of quick connector lock: Balls around the circumference

Connection method: Sleeve offset

ANSI standard: B1.20.3

Disconnection method: Sleeve offset

Connector type no. 2: Thread

Connection no. 2 thread diameter: 1/2 inch

Size (code): BG 3

Type of thread of connection no. 2: NPTF

Number of turns per inch of thread of connection no. 2: 14

Flow at 2 bar pressure: 75l/min

Type of connection no. 1: Quick connector

Type of connector no. 1 - male/female: Female

Connector #1 key size: 27mm
