Pa131245 tip dn13 3 4 unf 45

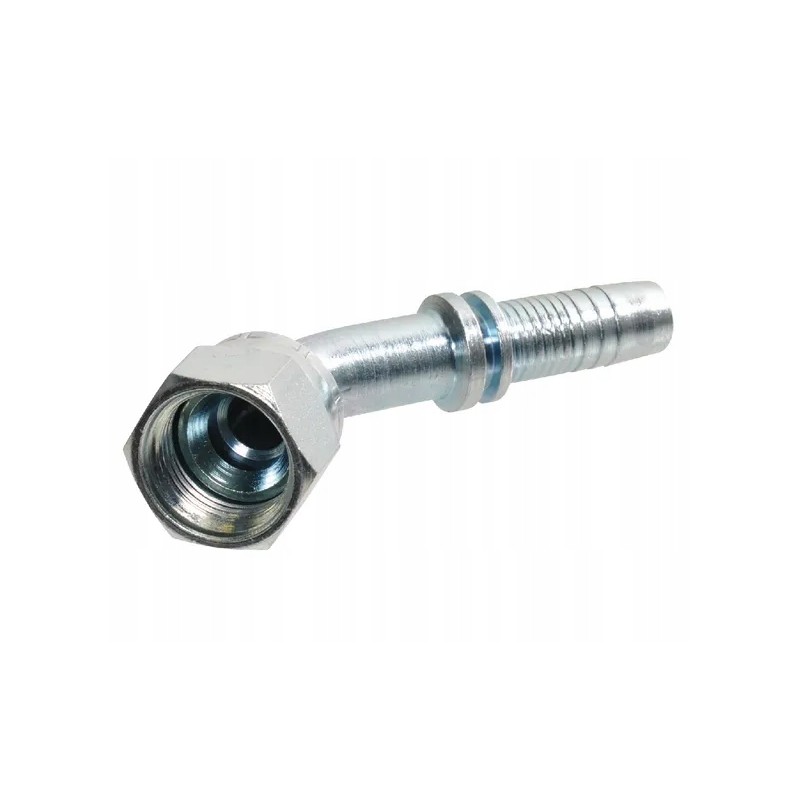

PA131245 End cap DN13-3/4-UNF-45°Product details

Cone seal - metal on metal - Flare end

Cone angle

37 °< p>

Shape

Elbow - 2 sides of connection

Connection type no. 1

Thread

Connection type no. 1 - male/female

Female

Connector type no. 1 - code

DKJ

Connector no. 1 diameter

3/4 inch

Connector No. 1 length

51.6 mm

Connector thread type

UNF

Wrench size for connector no. 1

25.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male /female

Male

Connection No. 2 Diameter

1/2 inch

Connection No. 2 Diameter

13 mm

Angle

45 °

Material

Steel

Surface treatment

Galvanized

White passivated

OE reference number

H1222541-08080M

Connection

JIC union nut (UNF thread) with internal cone 74°

Application

Screw connections on the folded edge of the sheet metal

Type

DKJ
