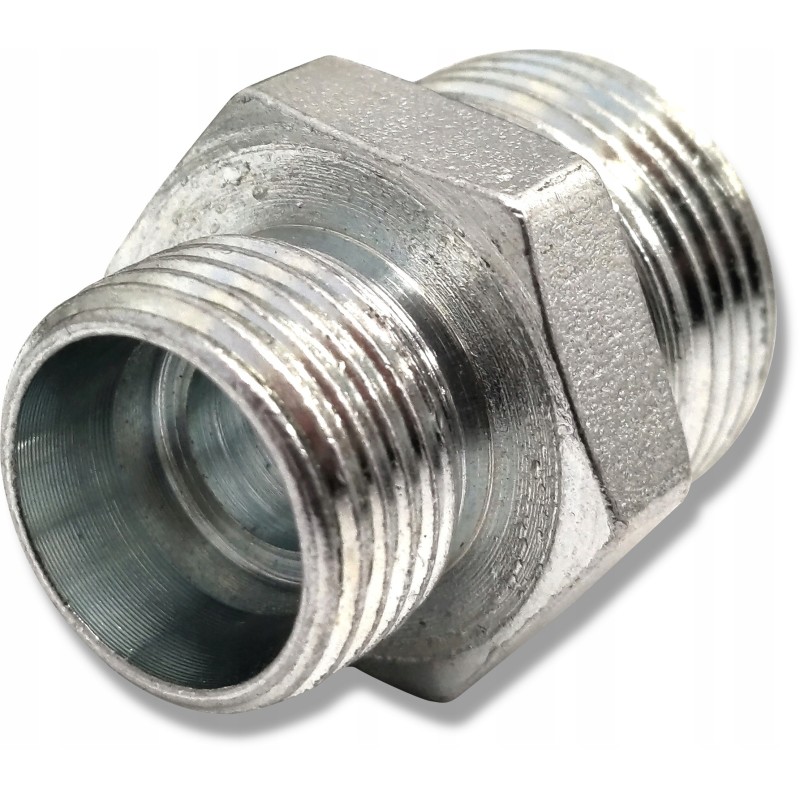

Straight hydraulic reduction, nipple 22 14
  • Straight hydraulic reduction, nipple 22 14
  • Straight hydraulic reduction, nipple 22 14

Straight hydraulic reduction, nipple 22 14

15013115475822
Other (SM)
£13.33
Quantity
5 Items

Description
STRAIGHT HYDRAULIC REDUCTION NIPEL M22 M14 SKRAW-MET CODE: [2752]Application:Hydraulic reduction is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is used to connect the main components in the hydraulic system with hydraulic lines.

It is responsible for connecting the hydraulic line or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

Technical Specification: Clamping cone angle: 24° (typical for the Polish standard)

Total length H: 28mm

Nominal passage diameter : 6mm

M1 thread on the cable side: external metric 22x1.5

M2 thread on the cable side: external metric 14x1.5

Connection version: light< p>

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material: weldable, galvanized steel, corrosion-resistant< p>

Product Details
Other (SM)
15013115475822
2752.22-14MRDGR
5 Items
New

Data sheet

Manufacturer
Other (SM)
Part Number
2752.22-14MRDGR
