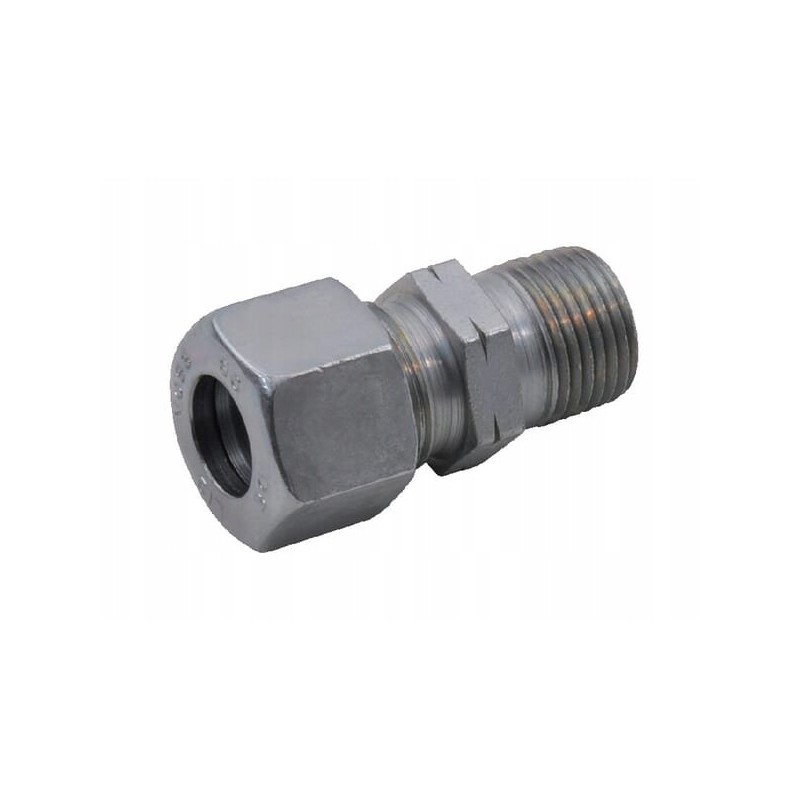

Straight screw-in connector gev6l18npt voss

Straight screw-in connector Parameters

Part number: GEV6L18NPT

Unit: piece

Manufacturer: Voss

Shape: Straight – 2 sides of the connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 6 mm

Connector thread diameter: M12

Connector thread length [K]: 9.9 mm

Connector No. 1 thread pitch: 1.5 mm

Connector thread type: NPT

Connector [S1] wrench size: 12 mm

Connector No. 2 type: Thread

Connector No. 2 type - male/female: Male

Connection #2 Thread Diameter: 1/8 inch

Connection #2 Thread Type: NPT

Connection #2 Wrench Size [S2]: 14mm

Pipe diameter: 6 mm

ANSI standard: B1.20.1-1983.

ASME standard: B1.20.1-1983.

DIN standard: 2353

Max working pressure: 315 BAR

Series: L

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimal connection with the cutting ring and perfect function

- High corrosion resistance

Technical information

- Stainless steel version available on request

Dimension from the axis of the connector to the end of the next connector [L1]

10.5 mm

Dimension from the axis of joint no. 2 to the end of the next joint [L2]

25 mm

Surface treatment< p>

- Zinc

- Nickel-plated
