Straight connector ab m16x1 5 m14x1 5 hydrolider

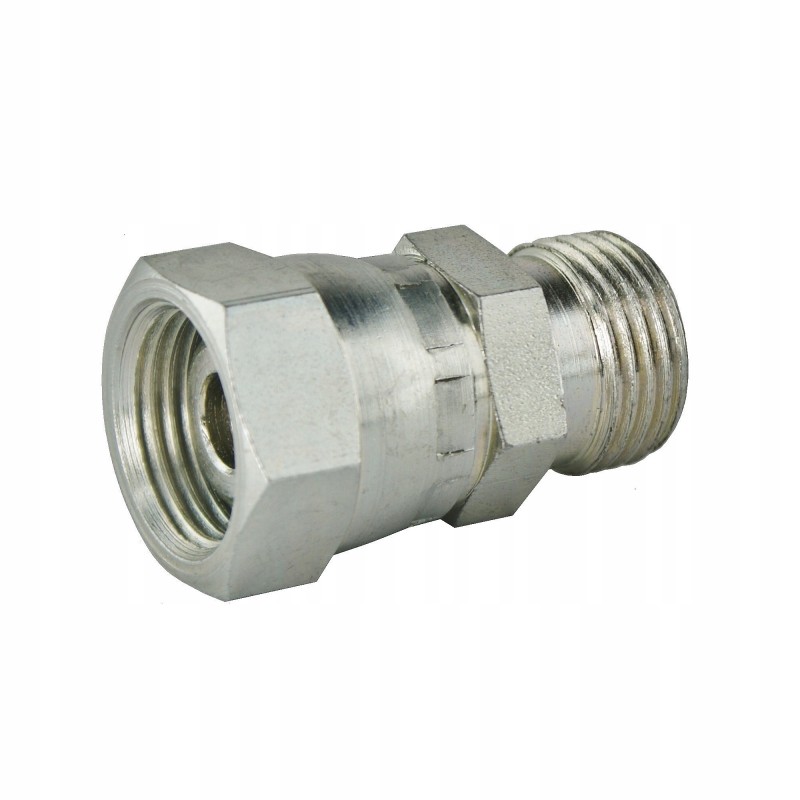

STRAIGHT HYDRAULIC CONNECTOR AB 16/14 Production:

Hydrolider, symbol: 1.60.01.012

Application:

It is widely used in hydraulic systems in agriculture, horticulture and forestry , construction and broadly understood industry.

Connector, standardized, light version with a conical self-sealing clamp when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Helpful data:

M16x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 15.6 - 15.9

Inner diameter [mm]: 14.2 - 14.6

M14x1.5 thread diameter measured with a caliper:

Diameter external [mm]: 13.6 - 13.9

Inner diameter [mm]: 12.2 - 12.6

Technical data:

Angle clamping cone: 24° (typical for the Polish standard)

Nominal diameter of the passage: 6mm

Thread on one side: internal metric 16x1.5

Thread on the other sides: external metric 14x1.5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: oil hydraulic

Material:

weldable steel, galvanized, corrosion-resistant
