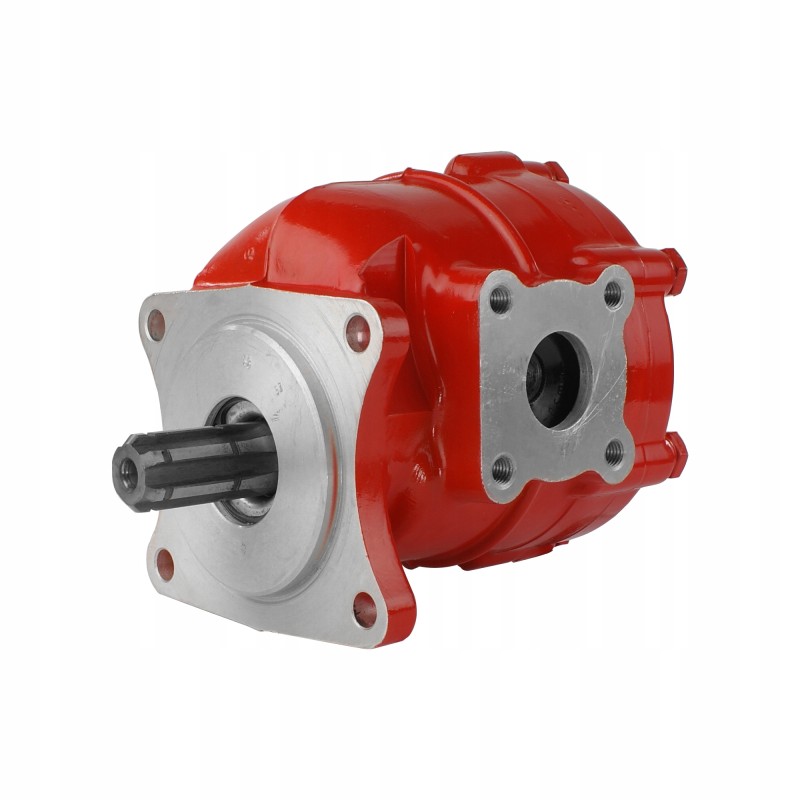

NSZ50 left round hydraulic oil pump

ROUND GEAR HYDRAULIC PUMP TYPE: NSZ50 DIRECTION OF ROTATION: LEFT Production:

Original product of the Hydrosila brand, symbol: 1.40.00.052

Application:

The pump operates at left speed, i.e. when we look at the pump from the shaft side in the position as in the photo, the shaft rotates counterclockwise, the suction is on the right side and the discharge is on the left, invisible side.

The pump is intended for use in systems where the working medium is hydraulic oil. Very versatile use in industry, agriculture, construction, forestry and others. In mobile systems, power steering and hydraulics in tractors, as well as in stationary hydraulic systems according to original designs and others. Also suitable for machines: T150, DT-75

Technical data and operating parameters:

shaft with 6 cutters diameter 25mm

working volume: 50 cm3/rpm

capacity at 1500 rpm: 75 l/min

maximum speed: 2400 rpm

nominal speed: 1500 rpm

maximum continuous pressure: 160 bar

maximum temporary pressure: 210 bar

Main advantages of Hydrosila Master series pumps:

light and compact design

precision of workmanship

long service life and reliability

good heat dissipation

operation at very high speeds and pressure allowed< p>

low price compared to the European pump series
