Hydraulic bulkhead nipple 18 3 8 12l angled

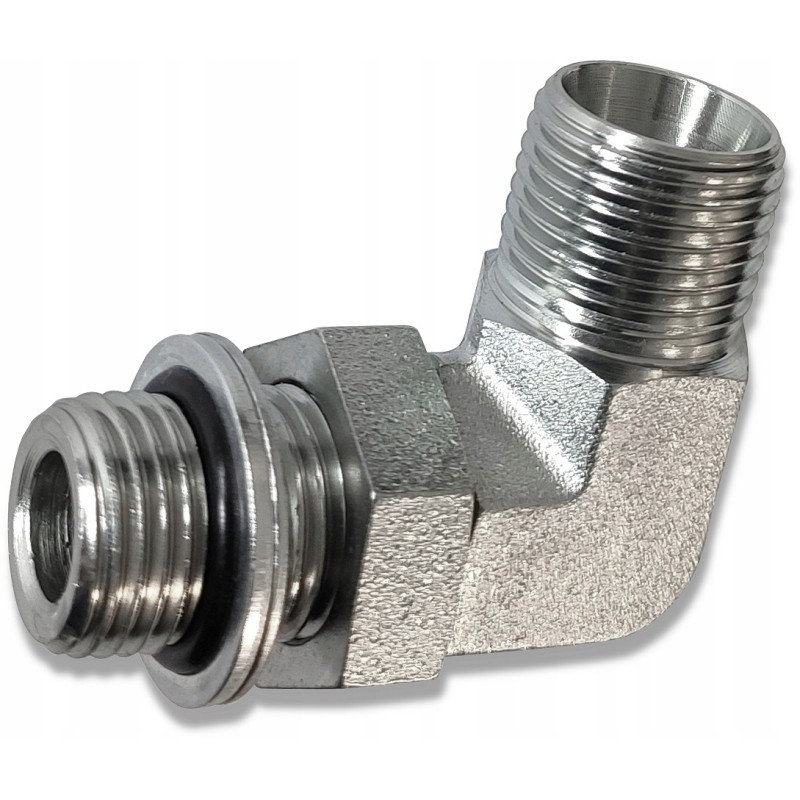

Bulkhead hydraulic connector - G3/8' elbow - M18x1.5 12LKOD SKRAW MET: [1700] Manufacturer: SM-G (SKRAW MET GROUP) The bulkhead connector in a standardized light version is mainly used for mounting/screwing sheet metal or other element on bulkheads, walls, fastening of cables, valves, etc.

You can also use this connector as an extension.

On one side there are two threads with a locknut and a washer with an O-ring, and on the other side there is a typical thread with a self-sealing cone when tightened.

Due to the lack of a rubber ED seal and a place for a seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections are used for this purpose and can be purchased at our other auctions.

Application: Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry, construction or the broadly understood industry.

Technical specification: Clamping cone angle: 24° (typical for the Polish standard)

Nominal diameter of the passage: 10 mm

Wrench nut : 22 mm

Thread with washers and nut: external inch G3/8'

Thread without washers: external metric M18x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil

Connector version: light

Material: galvanized steel
