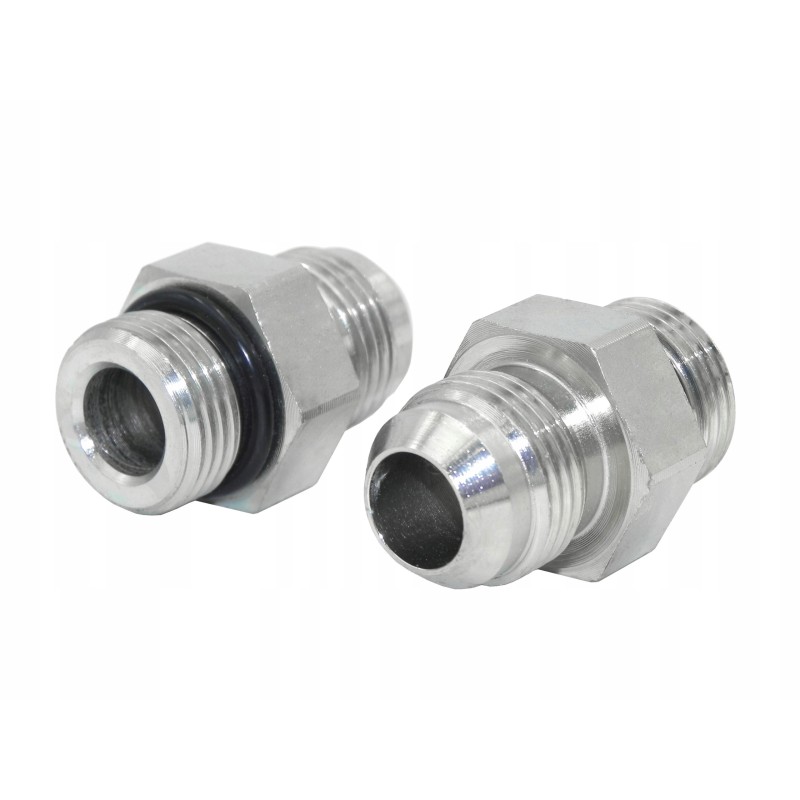

Hydraulic connection unf 1 5 16 unf 1 5 16

HYDRAULIC CONNECTION UNF 1.5/16'' - UNF 1.5/16'' Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection with rubber seal, screwed into the body of e.g. pumps, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic conduits.

The side intended for screwing into the body has an ED seal, no additional seals are required in this place.

The other side is intended for screwing in the conduit, elbow or other connector. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is also not required here. The connection is intended only for screwing into the body and is not suitable for connecting two wires. For this purpose, we use connectors that can be purchased at our other auctions.

Technical data:

Thread on the body side: external inch UNF 1.5/16''

Thread on the other side: external inch UNF 1.5/16''

Nominal pressure: 180bar

Maximum pressure: 230 bar

Type of liquid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
