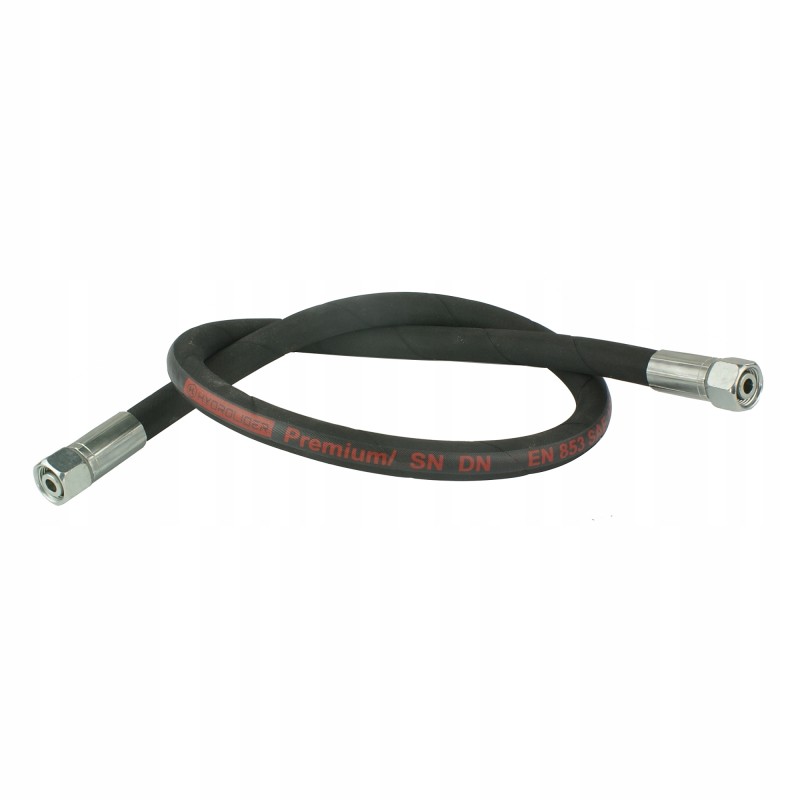

Hydraulic hose pipe dn13 22 22 aa 400 275bar

HYDRAULIC HOSE ZAKUTYTYPE AA13/2-400.22/22Production:

Original HYDROLIDER brand hose, symbol: 1.70.37.0400

Application:

Universal, pressure hydraulic hose with self-seal when tightening. It is widely used in hydraulic systems in agriculture and industry. It is used to connect basic hydraulic components, including: pumps, distributors, tanks, actuators, engines, etc.

The cable can be used in hydraulic systems with a maximum pressure of up to 275 bar and a maximum flow of up to 80L/min, in installations operating indoors and outdoors.< p>

Technical data:

The hydraulic hose is crimped, blown (cleaned with pressure from the compressor), ready for connection and operation in the system. The finished hose includes: an original, double-reinforced and flexible hose from the Hydrolider brand and fittings from a Polish manufacturer. All elements are resistant to weather conditions, cracking and corrosion.

Cable length with clamps: 400mm

Type of clamps: AA, straight on both sides, M22x1.5 nuts

Number of braids: double braid (2SN)

Maximum pressure: 275Bar

Recommended flow in the system: from 1 to 80L/min

Inner diameter of the passage: (DN13): 13mm

Hose external diameter: 21mm

The threads and clamping cone fit all connectors and connections in our offer.
