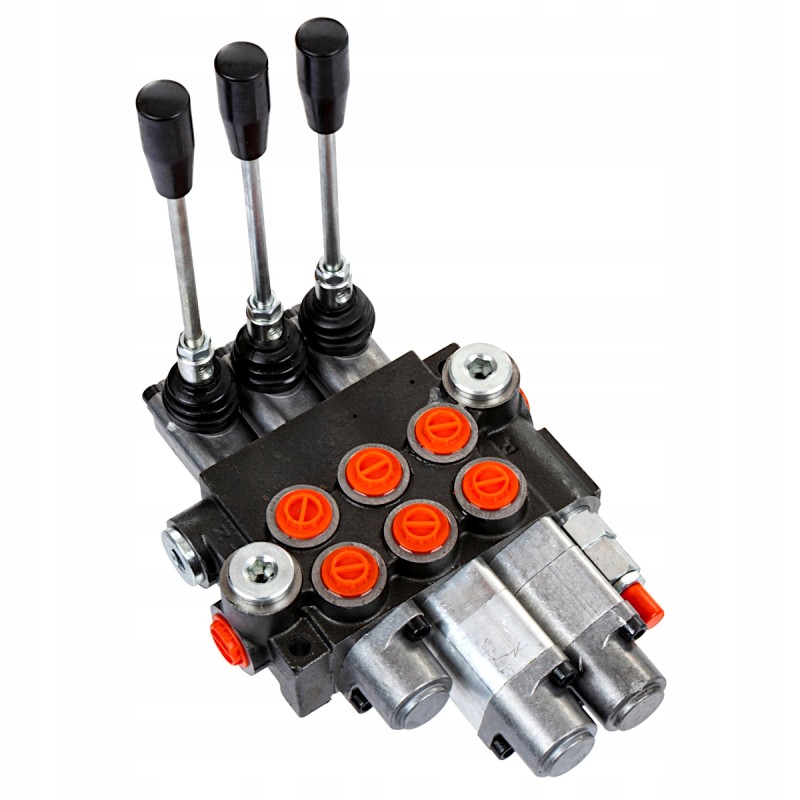

Hydraulic distributor 40l 3 sec 2 pl 1 latch

3-section hydraulic distributor 40L 2x floating side 1x double-sided PPD BadestnostMIZAR number: 65097

3-section hydraulic distributor 40L 2x floating (P), 1x double-sided (D)

A universal monoblock three-section distributor manufactured in Bulgaria.

It is used in many industries, from agriculture, through municipal services and construction, to industry. The versatility of the solutions used and attention to detail put this distributor at the forefront of this type of product range. The simplicity of construction guarantees operational reliability, and a wide range of spare parts allows modifications according to current needs.

Number and type of sections:

1 section - floating (P) - modified slider and rear cap, enabling 4 lever positions

2 section - floating (P) - modified slider and rear cap, enabling 4 lever positions

3 section - regular double-sided (D) (unmodified) - allows steering double-acting cylinder

The undoubted advantage of the floating section is the ability to work with both double-acting cylinders (folding harrows, reversible plows, etc.) and single-acting cylinders (tipping cylinders, hydraulic lifters, etc.).

The floating section has 4 positions:

0 - distributor in neutral position

1 - actuator advance

2 - double-acting actuator return

3 - lowering the single-sided actuator (in the case of a double-sided actuator - this position allows it to 'float', which is used, for example, in snow plows)

In the floating position - 3 - the section has a latch that keeps the distributor lever in this position position (so-called free flow)

Control:

Spring lever (returns to neutral position by itself).

Neutral position 0, cylinder piston rod is standing - oil goes to the overflow.< p>

Working position 1 - the cylinder piston rod extends.

Working position 2 - the cylinder piston rod retracts.

Technical information:

Manufacturer: Badestnost

Control: lever mounted on the distributor

Operating temperature ranging from -40°C to +60°C

Maximum working pressure:

P = 250 bar

T = 50 bar

A,B = 300 bar

Oil flow 40L/ min.

Connections:

Section outputs (A and B) - 3/8' BSP

Power supply (P*) - 1/2' BSP

Back (T*) - 1/2' BSP

Pressure outlet (N*) -1/2' BSP

* - markings embossed on the distributor housing to identify the connections

The distributor is equipped with a non-return valve and an overflow valve, which also serves as a safety valve.

Why Badestnost?

Badestnost is a Bulgarian company operating continuously since 1902. It is one of the first representatives of the dynamically developing industry in the Black Sea country. Since 1978, it has specialized in the production of hydraulic distributors. Highly qualified staff and many years of experience guarantee high quality and reliability of products that are widely used in agriculture, where control of the flow direction of the working fluid is required. Since 2015, the company has been a member of the American National Fluid Power Association, whose goal is the constant development of fluidized bed technology by over 300 manufacturers, distributors and suppliers of hydraulic systems and components from around the world!
