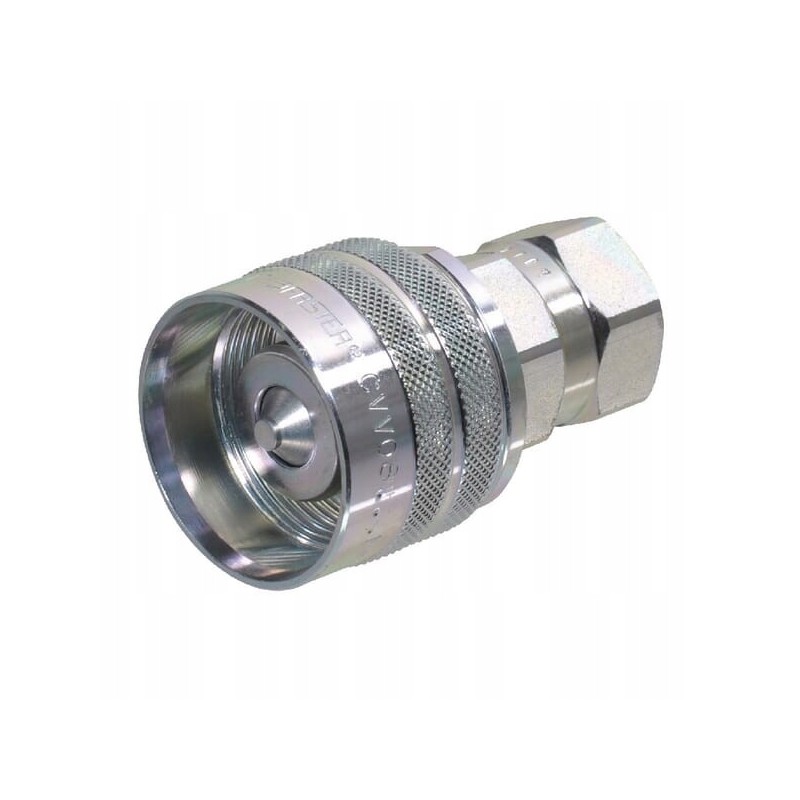

Screw-in quick connector, plug bg 3, internal thread 1 2

Screw-in quick connector, BG 3 plug, internal thread. 1/2 BSP INDEX: CVV0812GASMV

Material: Steel

Technical information: - The connector should be screwed on until it stops

Specifications: - Heavy Duty version - Viton seals

Benefits: - Durability even under heavy loads - Suitable for high operating temperatures

Properties: - Designed for high dynamic loads - With ball valve - High availability of equivalents from other manufacturers on the European market

Valve type: Mushroom valve

Shape: Straight - 2 sides of connection

Application: - Universal use - Construction machinery - Hydraulic hammers - Agricultural machinery - Mineral oil-based fluids

Size: 12 .5mm

Outside diameter: 42mm

ISO standard: 14541

Connection: dB

Connection diameter: 42mm

Surface treatment: Chrome-plated

Connector thread type: BSP

Total length: 70mm

Seal material: Fluo rubber [FPM]

Weight: 234 .7g

Working pressure: 300BAR

Type of connector no. 2 - male/female: Female

Possibility of connecting under pressure: Yes

Working temperature max: 160°C

Working temperature min: -25°C

Type of quick connector lock: Thread

Method connection: Screwed

Wrench size for connector no. 2: 27 mm

Disconnection method: Screwed

Type of connector no. 2: Thread

Thread diameter of connector no. 2: 1/2 inch

Thread type of connector no. 2: BSP

Number of turns per inch of thread of connector no. 2: 14

Flow at 2 bar: 65 l/min

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Male

Connector no. 1 wrench size: 27

36 mm
