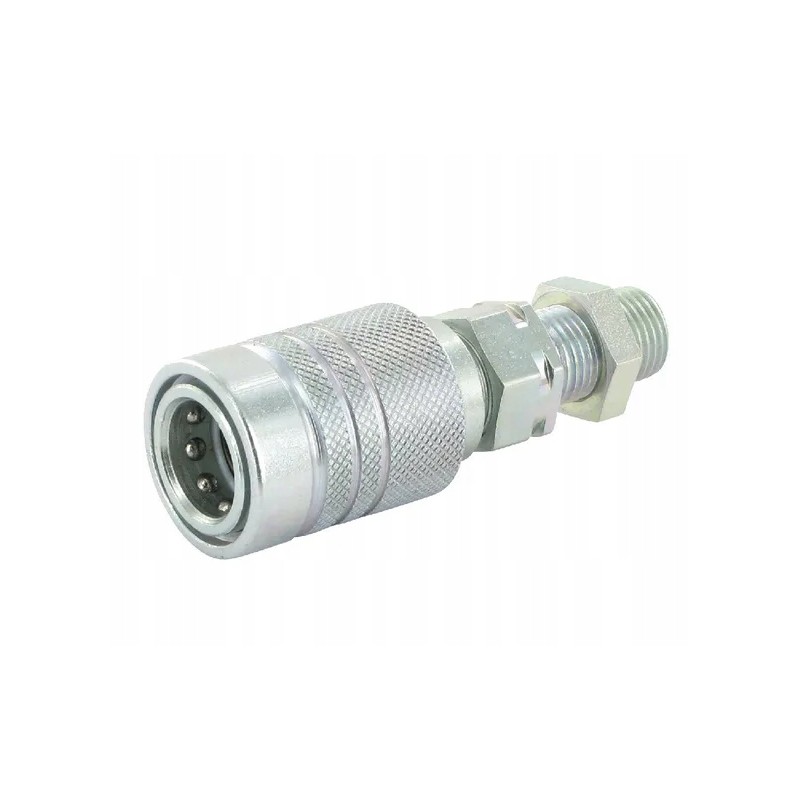

Quick connector socket skp f 1 2 thread m18x1 5

SKPF12N18 Quick connector socket SKP-F 1/2' bulkhead thread M18x1.5 12L Application

Universal use

Agricultural machinery

Municipal technology

Mineral oil based fluids Properties

Standard agricultural connector

Push & Pull principle

Tear-off function

With cut-off on both sides Axial actuation of the locking sleeve in both directions (double acting). Shape

Straight - 2 sides of connection Size (code)

BG 3

Connector type no. 1

Quick connector

Connector type no. 1 - male/female

Female

Connection diameter

20.6mm

Connector type no. 2

Thread

Connector type no. 2 - male/female

Men's

Diameter of connection no. 2

12mm

Thread diameter of connection no. 2

M18

Thread pitch of connector no. 2

1.50 mm

Connection thread type no. 2

Metric

Possibility of connection under pressure No

ISO standard

7241-1-A

Outside diameter

38mm

Total length

85mm

Material

Steel

Surface treatment

White passivated

Working pressure

250 BAR

Operating temperature max.

100 °C

Operating temperature min.

-30 °C

Seal material

Nitrile rubber [NBR]

Teflon (PTFE)
