Hydraulic hose cable aa dn12 m22 d 400 275bar

Hydraulic hose AA 12/2 M22x1.5, 2-braided (2SN), 275 Bar, L-400 mm Flexible hydraulic hoses, next to rigid seamless pipes, are used in every power hydraulics system for fluid transfer. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose is made on the basis of a hydraulic hose that meets EN 853 standards. It is an ideal solution for hydraulic systems with an operating pressure not exceeding 275 Bar. .

Hose specifications:

inner diameter: 12.5 mm, 1/2', dash: -08

outer diameter: 21.2 mm

inner layer: synthetic rubber

reinforcement: 2 steel wire braids

outer layer: synthetic rubber

working pressure: 275 Bar

burst pressure: 1100 Bar

bending radius: 180 mm

temperature range: -40°C +100°C

standard: EN 853 2SN

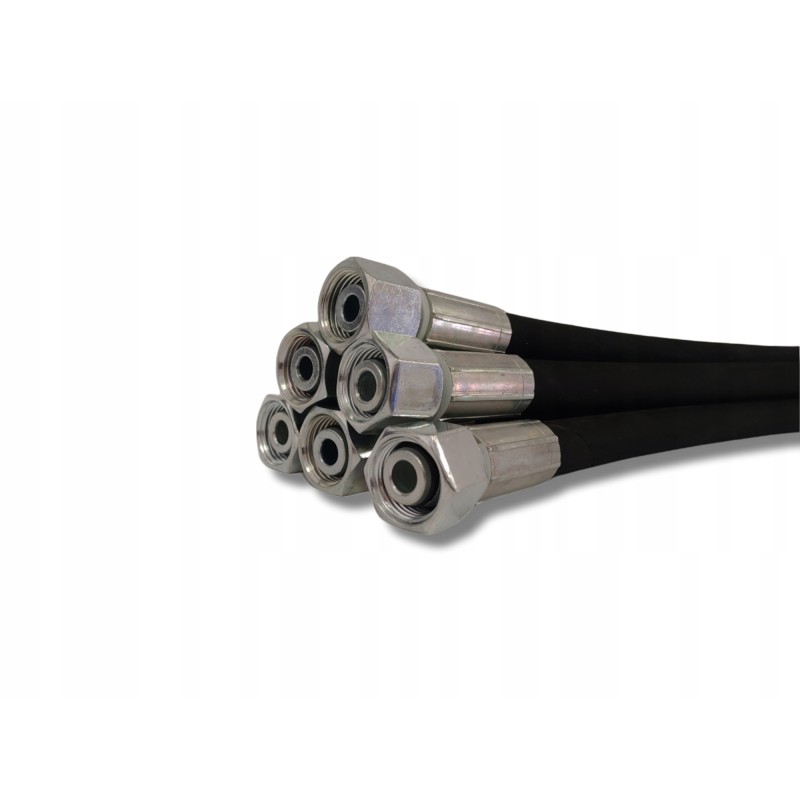

Cable crimped on both sides with DKOL straight metric terminals with internal thread M22x1.5 15L (nut).

Cable specifications:

length L - 400 mm

end 1: DKOL M22x1.5 15L

end 2: DKOL M22x1.5 15L

Cables available in other auctions in lengths: 300 , 400, 500, 600, 700, 750, 800, 900, 1000, 1100, 1200, 1250, 1450, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 6000, 7000, 8000, 9000 and 10000 mm.

We are able to produce a hose in any required size!

All our hydraulic hoses are cleaned at the appropriate stage of production, so the user can be sure of receiving a product ready for installation and a long life operation! To determine the flow value of a given hose dimension, you must use the appropriate table (see below).

The data is selected depending on the type of pipe:

pressure (supply) line

suction or return line

To determine the size of the appropriate diameter of the hydraulic hose, you need a ruler, one end of which is applied to the flow value (left ruler), the other to the flow speed value (right ruler), depending on from the place of use of the conduit.

Flow velocity lines have ranges of values that depend on the individual characteristics of the system.

To determine the best parameters, an average value from a given range must be selected, rounding the conduit size to the nearest whole size above the indication.

When designing and selecting cables for a given system, you also need to pay attention to:

twisting angle of the ends, this applies to the following types of cables: elbow: elbow, eyelet: eyelet, elbow-eyelet

selecting the appropriate type of fitting depending on the location and working position of the hose

selecting the bending radius of the hose

avoiding twisting the hose during installation, which may result its earlier wear

appropriate protection of the hose against premature wear.

We offer many varieties of hydraulic fittings and hoses. If you have not found the solution you are interested in or are looking for a tailor-made product, you will find it here! Our cables are manufactured on the basis of the received order!

The return of ordered products is possible after prior acceptance by the seller. Otherwise, 50% of the value of the goods will be refunded!
