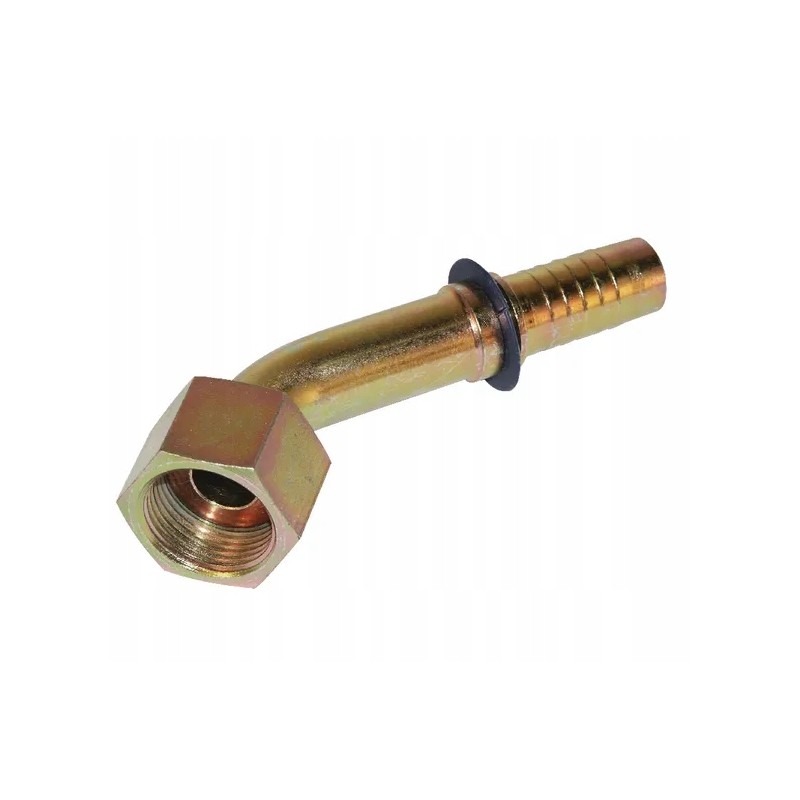

PAV6945 Fitting DN06-9/16 ORFS-45°Product details

O-ring

Shape

Elbow - 2 sides of the connection

Connector Type No. 1

Swivel Nut

Connector Type No. 1 - Male/Female

Female

Connector Type No. 1 - code

ORFS

Connector thread diameter

9/16 inch

Connector thread type

UNF

Wrench size for connector no. 1

17.0 mm

Connector type no. 2

Hose connector

Connector type No. 2 - Male/Female

Male

Connection No. 2 Diameter

1/4 inch

Connection No. 2 Diameter

6 mm

Dimension from the axis of the connector to the bottom of the next connector

41.1 mm

Dimension from the axis of connector no. 2 to the end of the next connector< p>

11 mm

Angle

45 °

Material

Steel

Surface treatment

Galvanized

White passivated

OE reference number

H1222443-04040M

Connection

UNF union nut with flat seal (ORFS)

Application

Only for flat seals (ORFS)
