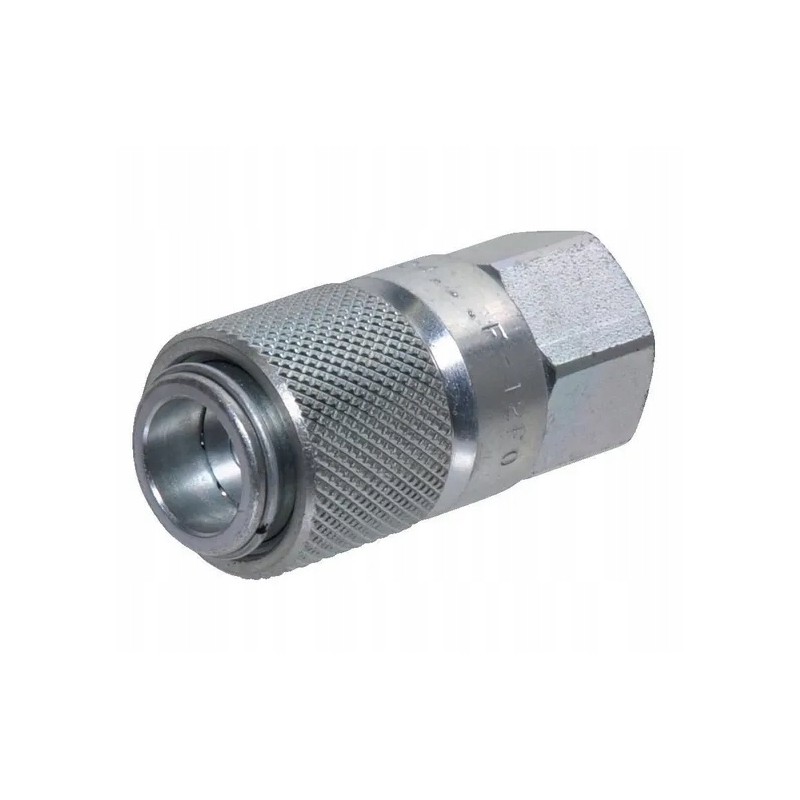

Diagnostic quick connector df socket 1 4

DF0414NPTF Diagnostic quick connector DF socket 1/4' female thread 1/4' NPTFTechnical information

Diagnostic connector with flat seal for test point systems

Due to the flat seal, during disconnection, the oil between the two components is forced into the system, preventing air from entering

Benefits

Flat seal connectors do not leak when connected and disconnected

No air enters during connection

Shape

Straight - 2 sides connection

Size

1/4 inch

Size

6.3 mm

Connector type no. 1

Quick connector

Connector type No.1 - Male/Female

Female

Connection Diameter

24mm

Connector Thread Diameter

1/4 inch

Connector Thread Type

NPTF

Connector No.1 Wrench Size

0.83 inch

No.1 Connector Wrench Size

21mm

Connector type no. 2

Thread

Connector type no. 2 - male/female

Female

Connection thread diameter no. 2

1/4 inch

Number of turns per inch of connector no. 2 thread

18

Connection thread type no. 2

NPTF

Possibility of connection pressurized

No

ANSI standard

B1.20.3

ISO standard

16028

O.D.

0.94 inch

O.D.

24 mm

Total length

1.97 inch

Total length

52.5 mm

Material

Steel

Surface treatment

Chrome-plated

Working pressure

420 BAR

Working temperature max.

125 °C

Working temperature min.

-25 °C

Type of quick connector lock

Balls around the circumference

Connection method

Press to connect

Method disconnection

Sleeve offset

Seal material

Nitrile rubber [NBR]

Series

DF

Valve type

Flat

Weight

113.3 g
