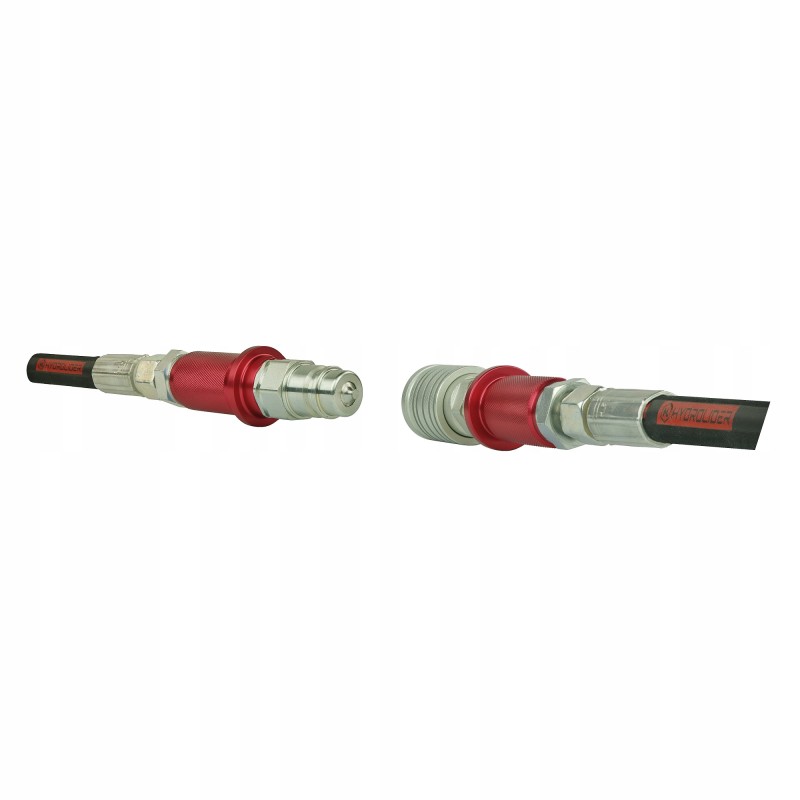

Hydraulic quick connectors euro m22 markers

SET OF QUICK CONNECTORS EURO ISOPLUG + SOCKETS COMPLETE WITH COLORFUL MARKERS Production:

Original product of the Hydrolider brand, symbol: 1.60.55.445

Application:

Quick connectors are used to quickly connect and disconnect individual hydraulic lines. A hydraulic line marker mounted on the quick connector allows for permanent marking of a hydraulic line that requires frequent disconnection.

Technical data:

Maximum flow: 80L/min

Maximum pressure: 350 bar

Type of quick connectors: EURO ISO plug and socket

Marker color: red

Quick connector material: galvanized steel

Marker material: aluminum

Connection material: galvanized steel

Threads from the side of the hydraulic conduits: M22x1.5

Composition of the offered set:

Quick connector, EURO ISO plug

Metal-rubber seal

Marker

Connection with seal

Quick connector, EURO ISO socket

Metal-rubber seal

Marker

Connection with seal

(hydraulic conduit not included) included in the set)

Different colors help organize larger hydraulic cable bundles:
