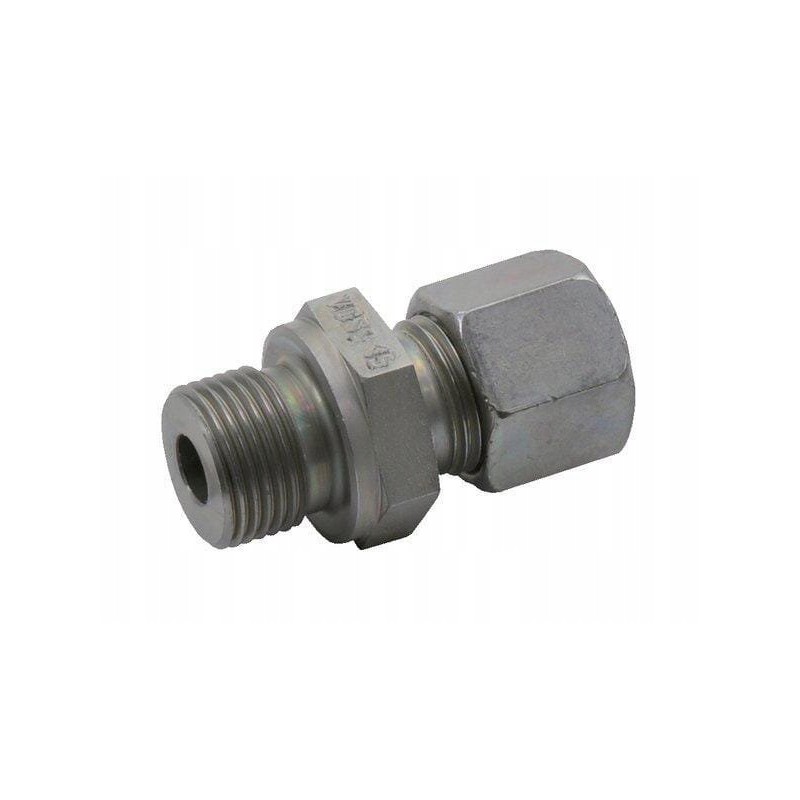

Straight screw-in connector gev6llr18 voss

Straight screw-in connector Parameters

Part number: GEV6LLR18

Unit: piece

Manufacturer: Voss

Shape: Straight – 2 sides of the connection

Connector type: Cutting ring

Connector type - male/female: Female

Connection diameter: 6 mm

Connector thread diameter: M10

Connector thread length [K]: 8 mm

Connector No. 1 thread pitch: 1 mm

Connector thread type: Metric

Wrench size for connector [S1]: 12 mm

Connector type no. 2: Thread

Connector type no. 2 - male/female: Male

Thread diameter connector no. 2: 1/8 inch

connector no. 2 thread type: BSP

wrench size for connector no. 2 [S2]: 11 mm

pipe diameter : 6 mm

ISO standard: 228

Max working pressure: 100 BAR

Series: LL

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimal connection with the cutting ring and perfect operation

- High corrosion resistance

Technical information

- Available on request in a stainless steel version

Dimension from the axis of the connector to the end of the next connector [L2]

20.5 mm

Dimension from the axis of connector no. 2 to the end of the next connector [L1]

9 mm

DIN standard

- 2353

- 228

- 3852

- 2401< p>

Surface treatment

- Zinc

- Nickel-plated
