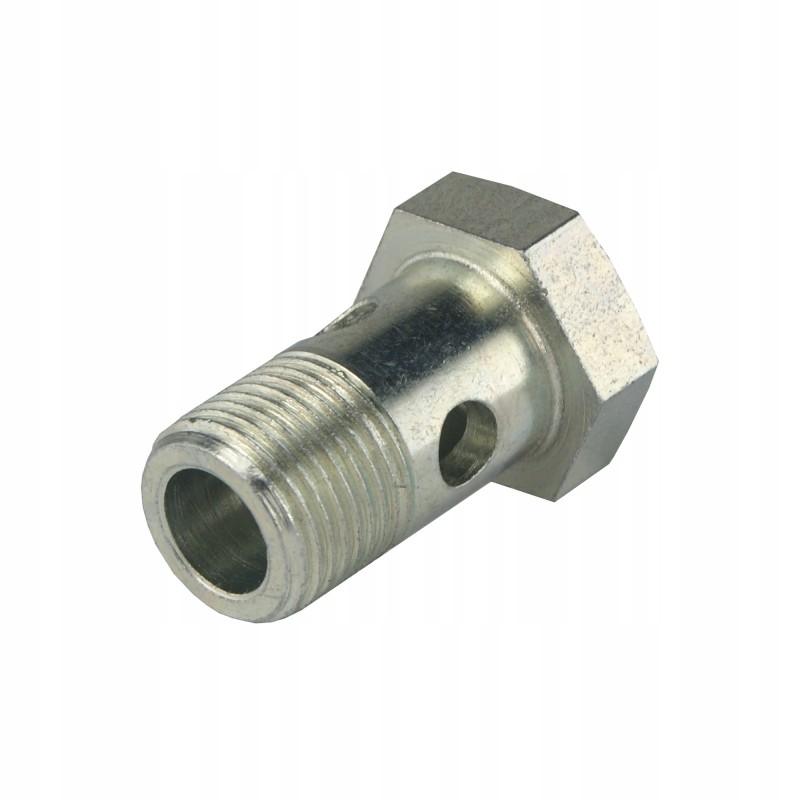

Hydraulic screw with eye 18x1 5 eye

HYDRAULIC EYEL SCREW FI 18mmProduction:

Original product of the Hydrolider brand, symbol: 1.60.51.018.1

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The screw fits connections with an eyelet body. It connects the pump, cylinder, distributor, etc. with hydraulic lines.

The eyelet connection system is used where space is limited and a pipe with a traditional elbow does not fit.

Helpful data:

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16, 2 - 16.6

Eye connection system:

To properly connect the screw, it is necessary to use an eye connection and two sealing washers.

The first washer goes between the connection body and the eye bolt head. The second one comes between the body of e.g. a pump or cylinder and the connection body (photo).

Technical data:

Thread: external metric 18x1.5

Required diameter eyelets: 18mm

Recommended thickness of the eyelet connection body: 14 - 15mm

Hexagon head tightened with a wrench: 24

Material: weldable, galvanized steel, corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil
