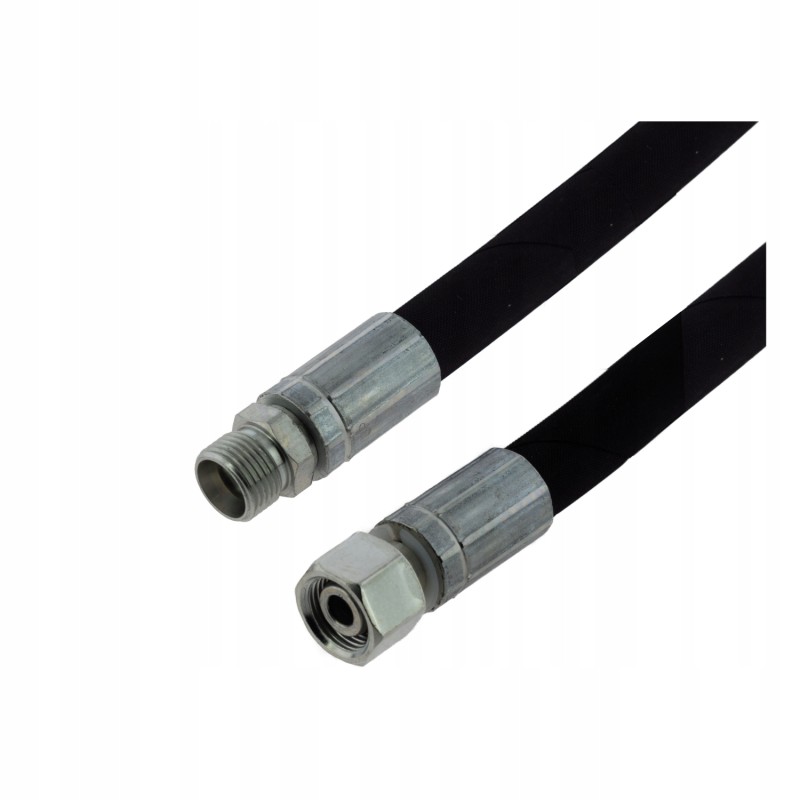

Hydraulic hose cable AB DN10 M18 D 400 330bar

Hydraulic hose AB 10/2 M18x1.5, 2-braided (2SN), 330 Bar, L-400 mm, with one end with internal thread (nut) and the other with external thread GW/GZEFlexible hydraulic hoses right next to rigid seamless pipes used are in every power hydraulics system for transferring liquids. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose made on the basis of the North-Fighter hydraulic hose meets the EN 853 2SN standards while offering an attractive price. It is an ideal solution for hydraulic systems with operating pressure not exceeding 330 Bar.

Hose specifications:

internal diameter: 10 mm, 3/8', dash: -06

outer diameter: 18 mm

inner layer: synthetic rubber

reinforcement: 2 steel wire braids

outer layer: synthetic rubber

working pressure: 330 Bar

burst pressure: 1320 Bar

bending radius: 130 mm

temperature range: -40°C +100 °C

standard: EN 853 2SN

The cable is crimped on both sides with DKOL straight metric terminals, one with internal thread M18x1.5 12L (nut), the other with external thread M18x1.5 12L< p>

Cable specification:

length L - 400 mm

end 1: DKOL M18x1.5 12L

end 2: CEL M18x1.5 12L

On other auctions available cables in the following lengths: 300, 400, 500, 600, 700, 750, 800, 900, 1000, 1100, 1200, 1250, 1450, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 6000, 7000, 8000, 9000, 10000, 12500, 15000, 17500, 20000, 25000, 30000, 35000, 40000, 45000 and 500 00 mm.

We are able to produce hose in any required size!

All our hydraulic hoses are cleaned at the appropriate stage of production, so the user can be sure of receiving a product ready for installation and long-term operation! To be able to determine the flow value of a given hose dimension, you must use appropriate table (see opposite).

The data is selected depending on the type of pipe:

pressure (supply) line

suction or return line

To determine the size of the appropriate diameter of the hydraulic hose, you need a ruler, one end of which is applied to the flow value (left ruler), the other to the flow speed value (right ruler), depending on the place of use of the hose.

Lines flow velocities have ranges of values that depend on the individual characteristics of the system.

To determine the best parameters, you need to select the average value from a given range, rounding the pipe dimension to the full size above the indication.

When designing and when selecting cables for a given system, you also need to pay attention to:

twist angle of the ends, this applies to the following types of cables: elbow:elbow, eyelet:eyelet, elbow-eyelet

selection appropriate type of tip depending on the location and working position of the hose

selection of the bending radius of the hose

avoiding twisting the hose during installation, which may result in its premature wear

proper protection of the hose against premature wear.
