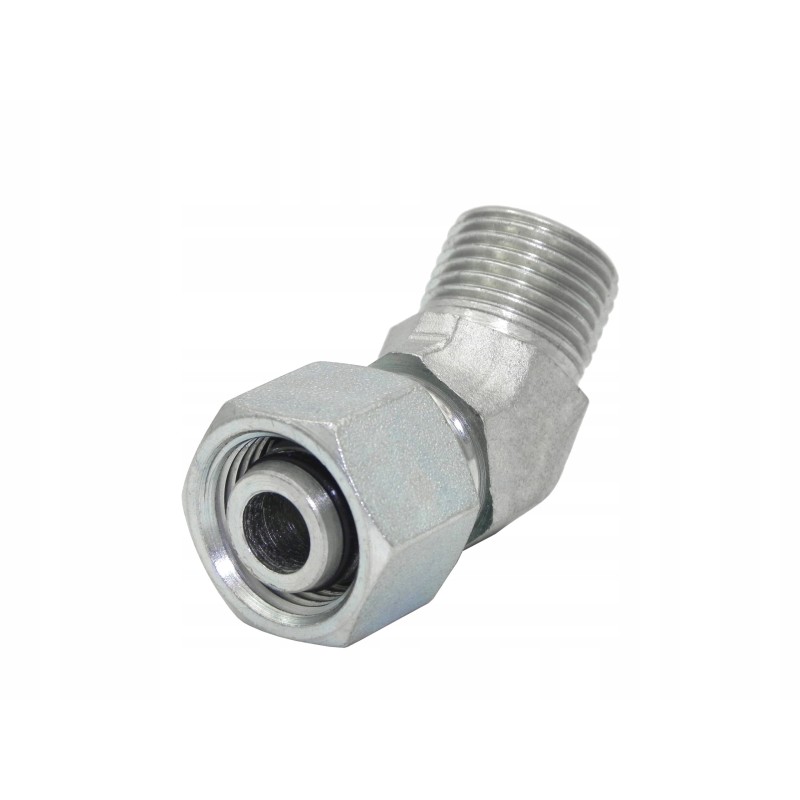

Hydraulic elbow nut M16x1 5 10l 45 degrees
  • Hydraulic elbow nut M16x1 5 10l 45 degrees
  • Hydraulic elbow nut M16x1 5 10l 45 degrees

Hydraulic elbow nut M16x1 5 10l 45 degrees

15010605170241
£16.40
Quantity
5 Items

Description
HYDRAULIC ELBOW WITH NUT M16x1.5 10L 45 DEGREESApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connector with a conical self- clamping seal when tightening. Designed to connect two hydraulic hoses or to connect with other connectors with the same cone system.

Technical data:

Thread on one side: external metric 16x1.5 10L - light standard< p>

Thread on the other side: internal metric 16x1.5 10L - light standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Type liquid: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of hydraulics force. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010605170241
KN M16 10L 45
5 Items
New

Data sheet

Manufacturer
Other (Pozostałe)
Part Number
KN M16 10L 45
